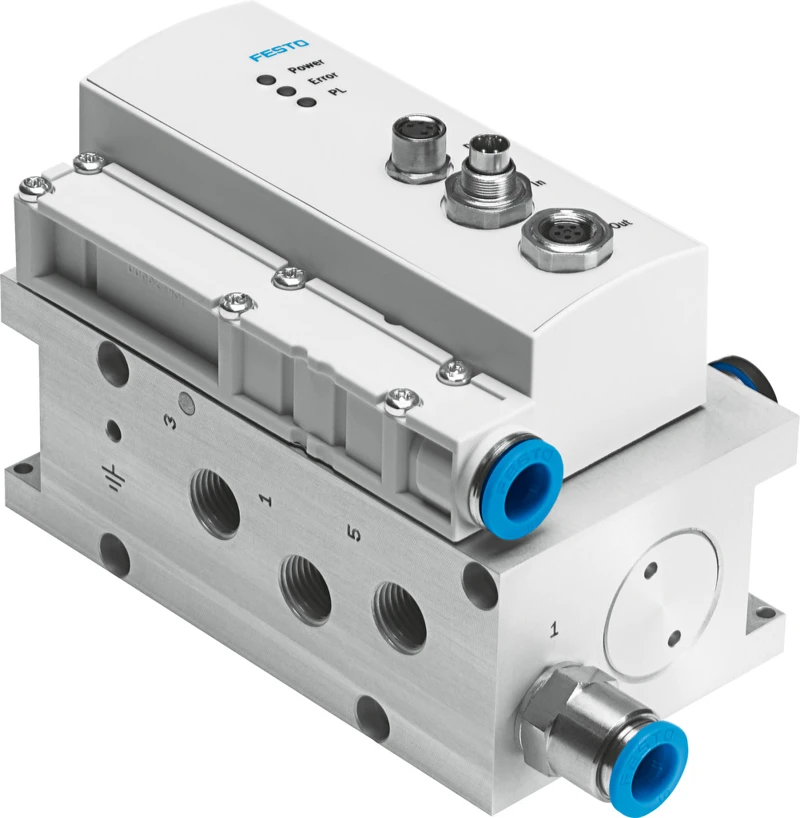

Proportional directional control valve, VPWP-6-
SKU: 550171
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Accessories, Proportional directional control valve VPWP
• Nominal size 6 mm
• Type of actuation Electric
• Sealing principle Hard
• Mounting position optional, Preferably horizontal (display elements facing upwards) If the valve is moved, it must be mounted at a right angle to the direction of movement
• Design Piston gate valve, With integrated pressure sensors
• Type of reset Magnetic spring
• Safety instructions Safety position VPWP: if there is a problem with the control interface, the valve assumes the closed mid-position.
• Type of piloting Direct
• Flow direction Non-reversible
• Symbol 00992136
• Valve function 5/3-way proportional directional control valve, closed
• Status displays LED yellow = PL (power load), LED green = power, LED red = error
Buy currently uses Select Automation shop pricing and checkout.
Proportional directional control valve VPWP
• Based on the technology of the valve MPVE, the VPWP enables the direction of motion to be varied.
• To transfer data digitally, the secure integrated interface can be used. In servo-pneumatic applications, the VPWP is nearly always combined with a controller CMAX.
• Controlled piston spool valve
• Digitally actuated
• Integrated pressure sensors for monitoring function and force control
• With auto identification
• Diagnostic function
• Integrated digital output, e.g. for a clamping/brake unit
• Suitable for servo-pneumatic applications with axis controller CPX-CMAX and end-position controller CPX-CMPX
