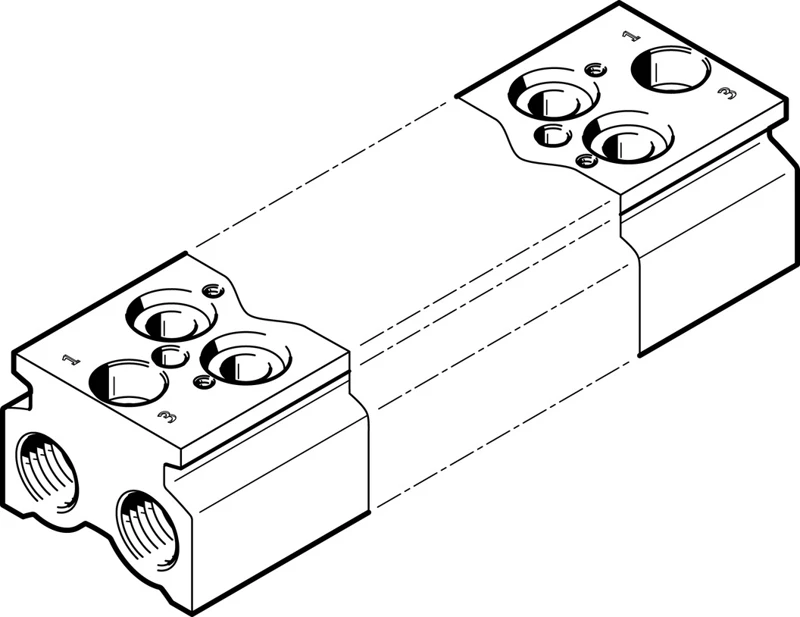

Manifold block, CPE18-3/2-PRS-3/8-10

Specifications • Manifold blocks CPE18 • Fixed-grid manifold block • Grid dimension 26 mm • Mounting position optional • Max. number of valve positions 10 • Max. number of pressure zones 2 • Burst pressure 5 MPa • Burst pressure 50 bar • Burst pressure 725 psi • Operating pressure -0.09 MPa ... 1 MPa • Operating pressure -0.9 bar ... 10 bar • Corrosion resistance class CRC 2 - Moderate corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Media temperature -5 °C ... 50 °C • Ambient temperature -5 °C ... 50 °C
