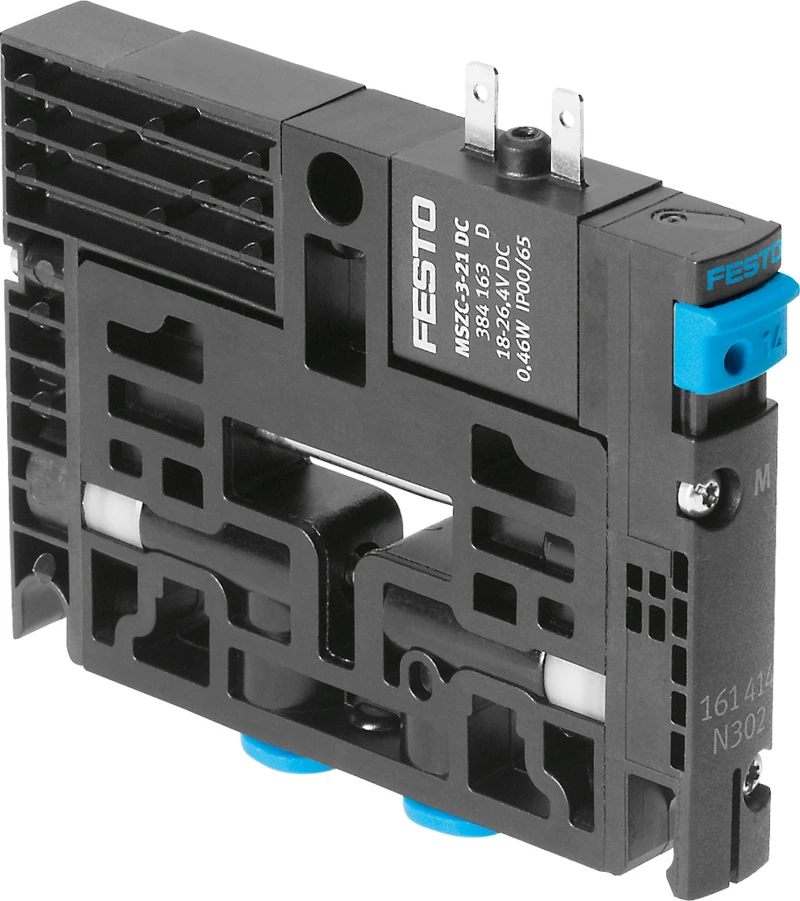

Solenoid valve, CPV10-M1H-5LS-M7-B-EX
SKU: 550696
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve manifold assembly CPV10-EX-VI, Compact Performance
• Accessories, Individual sub-base valve
• Valve function 5/2-way, monostable
• Type of actuation Electric
• Valve size 10 mm
• Standard nominal flow rate (standardised to DIN 1343) 400 l/min
• Pneumatic working port M7
• Operating voltage 24V DC
• Operating pressure 0 MPa ... 1 MPa
• Operating pressure 0 bar ... 10 bar
• Design Piston gate valve
• Type of reset Pneumatic spring
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Valve manifold assembly CPV10-EX-VI, Compact Performance
• Accessories, Individual sub-base valve
• Valve function 5/2-way, monostable
• Type of actuation Electric
• Valve size 10 mm
• Standard nominal flow rate (standardised to DIN 1343) 400 l/min
• Pneumatic working port M7
• Operating voltage 24V DC
• Operating pressure 0 MPa ... 1 MPa
• Operating pressure 0 bar ... 10 bar
• Design Piston gate valve
• Type of reset Pneumatic spring
