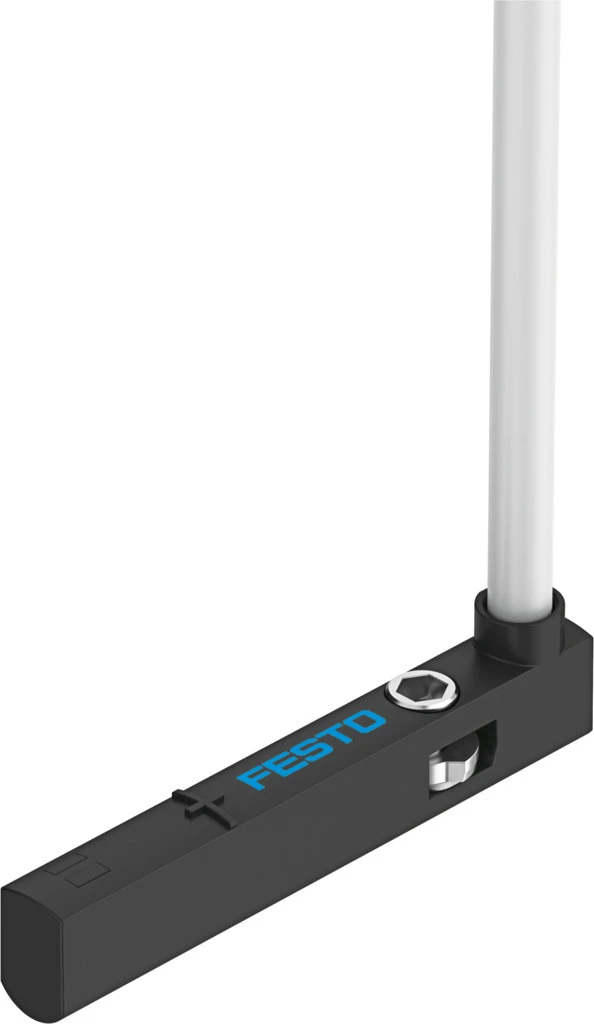

Proximity sensor, SME-10M-DS-24V-E-2.5-Q-OE
SKU: 551366
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Parallel gripper HGPL-B, heavy-duty with long stroke
• Accessories, Proximity sensor
• Design For C-slot
• Conforms to standard EN 60947-5-2
• Symbol 00991620
• Approval RCM trademark
• CE mark To EU EMC Directive, In accordance with EU RoHS Directive
• CE marking To UK instructions for EMC, To UK RoHS instructions
• Special characteristics Oil resistant
• Note on materials RoHS-compliant, Free of halogen
• Measured variable Position
• Measuring principle Magnetic reed
• Ambient temperature -40 °C ... 70 °C
• Cable length 2.5 m
Buy currently uses Select Automation shop pricing and checkout.
Proximity switch SME-10M
• Magnetic reed cylinder sensor for round slot, can be inserted from above.
• Measuring principle: magnetic reed
• Individually configurable or pre-assembled
• Inserted in the slot from above, flush with the cylinder profile
• LED switching status indication
• Cable length 0.3, 2.5 m
