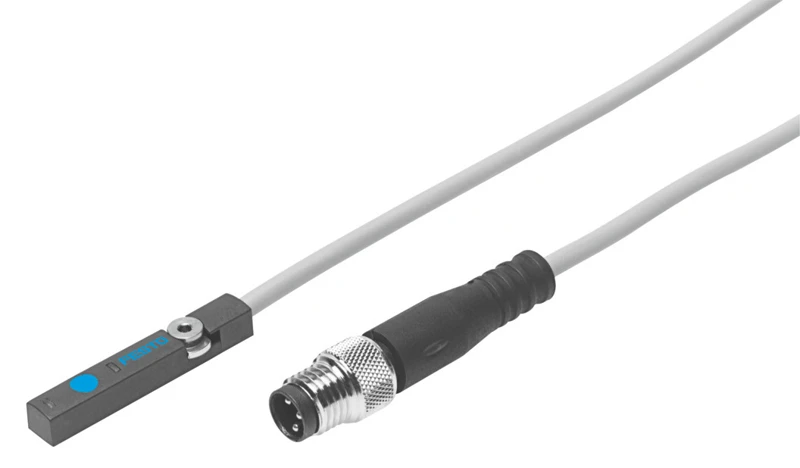

Proximity sensor, SIES-8M-PS-24V-K-10-M8D
SKU: 551390
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Proximity switches SIES-8M, inductive for T-slot
• Size Slot 8
• Switching output PNP
• Switching element function N/O contact
• Operational voltage range DC 10 V - 30 V
• Cable length 10 m
• Measured variable Position
• Measuring principle Inductive
• Rated operating distance 1.5 mm
• Reduction factors Aluminium = 0.62, Stainless steel V2A = 0.95, Copper = 0.6, Brass = 0.72, Steel St 37 = 1.0
• Ambient temperature -25 °C ... 70 °C
• Repetition accuracy with constant conditions
Buy currently uses Select Automation shop pricing and checkout.
Proximity switch SIES-8M
• The inductive proximity sensor SIES-8M for electric drives is ideal for signalling intermediate and end positions.
• The only inductive sensor for 8 mm slots, it features a patented status indication using two LEDs.
• Its clamping technology means it is quick to position and easy to secure.
• Ideally suited for position sensing for electric axes and grippers with T-slot
• Flush mounting
• Switching status indication with 2 LEDs for better visibility regardless of the direction from which it is approached
• Single inductive sensor for 8 slot with patented LED status indicator
