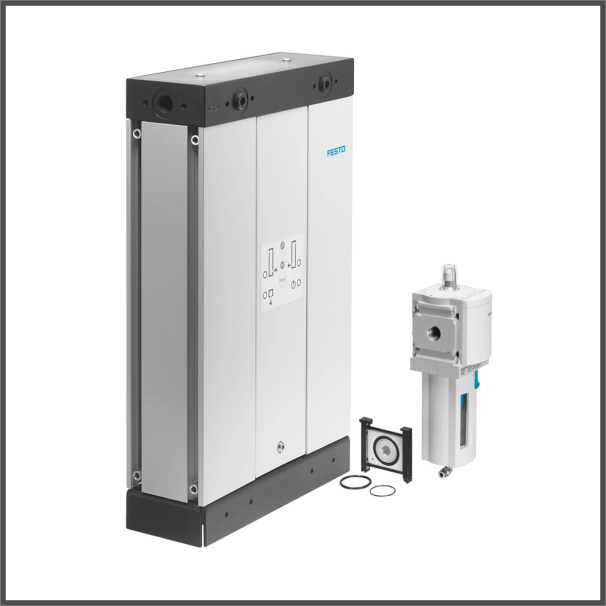

Adsorption dryer, PDAD-13-G3/8

Specifications • Adsorption dryer PDAD • Mounting position Vertical, Horizontal • Design Cold regenerating adsorption dryer • Symbol 00992135 • Inlet pressure 1 4 bar ... 16 bar • Power consumption at 24VDC 9.6 W • Power consumption at 230 VAC 16 VA • Pollution degree 2 • KC mark KC-EMV • CE mark To EU EMC Directive, To EU Low Voltage Directive • CE marking To UK instructions for EMC, To UK regulations for electrical equipment • Operating medium Compressed air to ISO 8573-1:2010 [6:-:4] • Note on operating and pilot medium Lubricated operation not possible, No water in liquid form • Pressure dew point -40 °C • Pneumatic connection, port 1 G3/8
