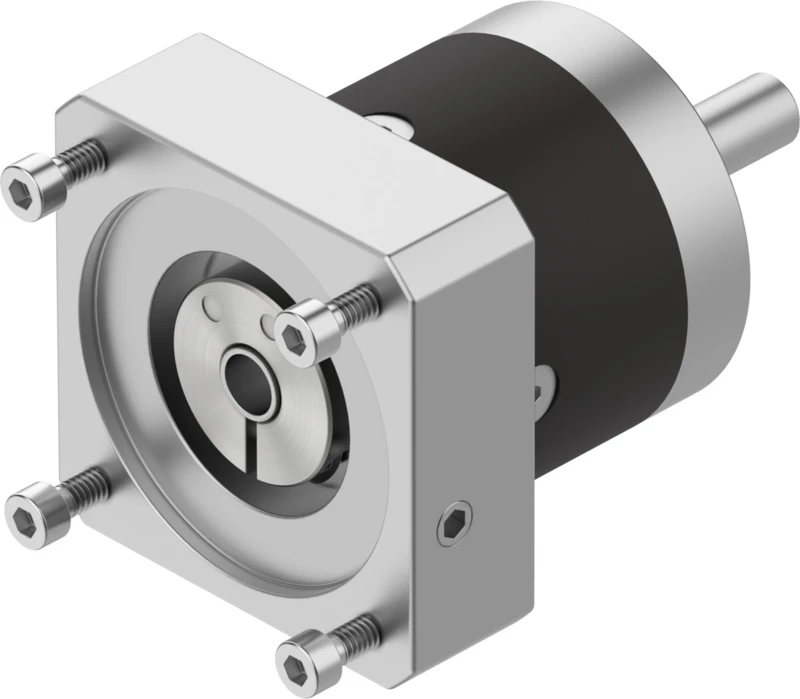

Gear unit, EMGA-60-P-G5-SAS-70
SKU: 552191
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Gear unit EMGA
• Gear unit flange size 60 mm
• Motor flange size 70 mm
• Torsional backlash 0.17 deg
• Type of gear unit Planetary gear
• Gear unit ratio 5:1
• Max. drive speed 13000 rpm
• Operating temperature of gear unit -25 °C ... 90 °C
• LABS (PWIS) conformity VDMA24364-B2-L
• Degree of protection IP54
• Continuous output torque 22 Nm
• Torsional rigidity 2.3 Nm/arcmin
Buy currently uses Select Automation shop pricing and checkout.
Gear unit EMGA
• The range of straight-cut planetary and bevel gears is coordinated with the stepper and servo motors from Festo.
• Planetary gear unit, straight, for servo motors EMME-AS, EMMT-AS
• Planetary gear unit, straight, for stepper motors EMMS-ST
• Bevel gear for servo motors EMME-AS, EMMT-AS, EMMS-AS
• Life-time lubrication
• Degree of protection IP54
