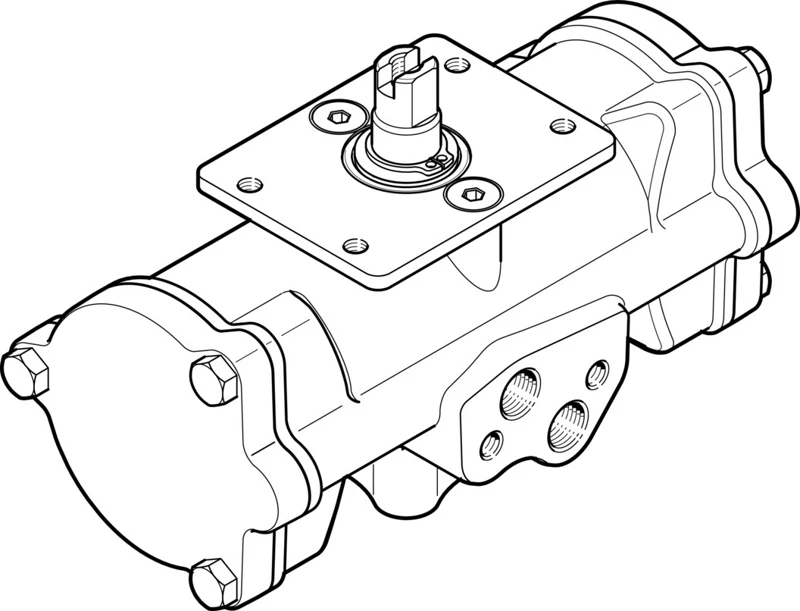

Semi-rotary drive, DAPS-0030-090-R-F03-CR
SKU: 552870
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Quarter turn actuators DAPS CR, double-acting
• Pneumatic connection G1/8
• Torque at nominal operating pressure and 0° swivel angle 30 Nm
• Shaft connection T9
• Size of valve actuator 0030
• Flange hole pattern F03
• Swivel angle 90 deg
• Shaft connection depth 10.2 mm
• Cushioning No cushioning
• Mounting position optional
• Mode of operation Double-acting
• Design Scotch yoke system
• Position detection Without
Buy currently uses Select Automation shop pricing and checkout.
Quarter turn actuator DAPS
• The compact and sturdy quarter turn actuator DAPS with lever kinematics is specially designed for the requirements of the process industry.
• High breakaway torques
• Flange hole pattern to ISO 5211
• Mounting hole pattern to VDI/VDE 3845
• Optionally with handwheel as a manual emergency override
• Corrosion-resistant version made from stainless steel
• To EU Explosion Protection Directive (ATEX)
• With safety functions
