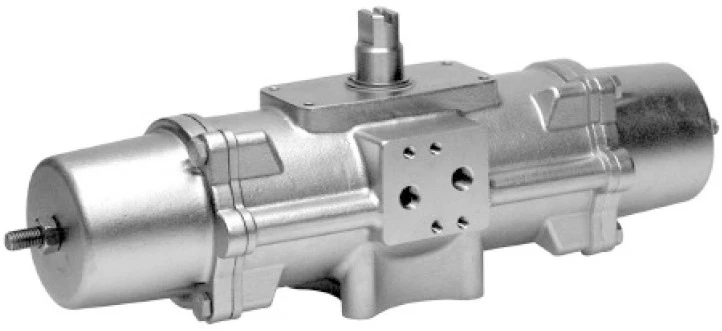

Semi-rotary drive, DAPS-0030-090-RS2-F0305-CR

Specifications • Quarter turn actuators DAPS CR, single-acting • Pneumatic connection G1/8 • Torque at nominal operating pressure and 0° swivel angle 37.6 Nm • Shaft connection T11 • Size of valve actuator 0030 • Flange hole pattern F03, F05 • Swivel angle 90 deg • Shaft connection depth 12.1 mm • Fitting connection conforms to standard ISO 5211 • Cushioning No cushioning • Mounting position optional • Mode of operation Single-acting • Design Scotch yoke system • Position detection Without
