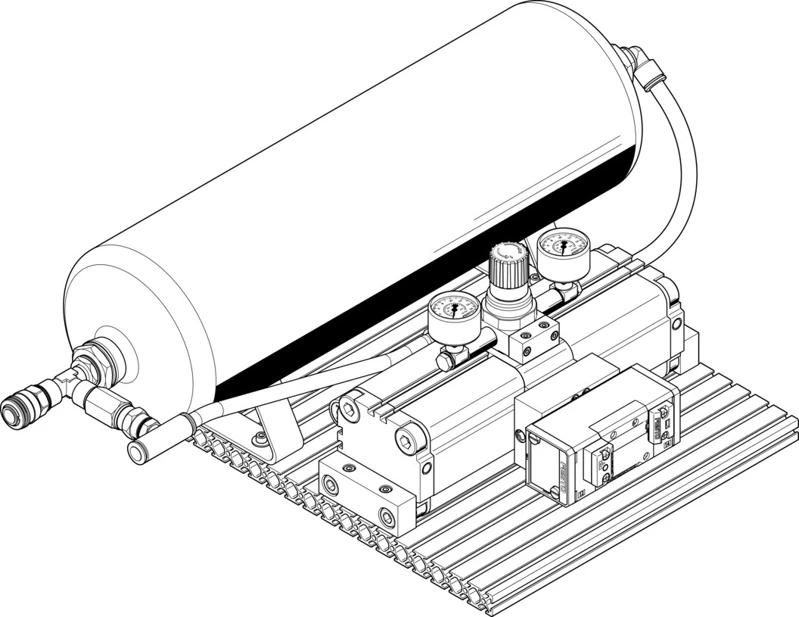

Pressure booster, DPA-63-10-CRVZS20
SKU: 552934
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pressure booster DPA
• Piston diameter 63 mm
• Volume 20 l
• Mounting position Condensate drain underneath
• Design Twin-piston pressure booster, With air reservoir, Via pressure gauge, With check valve
• Symbol 00991432
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
• Output pressure 2 4 bar ... 10 bar
• Operating pressure 2 bar ... 8 bar
• Pressure regulation range 4 bar ... 10 bar
• Inlet pressure 1 2 bar ... 8 bar
• Pneumatic connection, port 1 QS-12
Buy currently uses Select Automation shop pricing and checkout.
Pressure booster DPA
• More pressure exactly where it is needed with the double-piston pressure booster with pressure ratio 1:2 for outlet pressures up to 16 bar.
• Pneumatic pressure increase up to double the input pressure
• Available as pressure booster/air pressure reservoir combinations
• Any mounting position
• Short filling times
• Long service life
• Compact design
• Available with sensing option
