Service unit combination, MSB9
SKU: 552938
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Service unit combination MSB9
• Size 9
• Series MS
• Type of actuation Electric, Manual, Pneumatic
• Actuator lock Rotary knob with integrated lock
• Mounting position optional, Vertical +/-5°
• Grade of filtration 0.01 µm ... 40 µm
• Condensate drain Fully automatic, Manually rotating, Semi-automatic
• Max. condensate volume 220 ml
• Max. oil capacity 490 cm³
• Operating pressure 0 bar ... 20 bar
• Pressure regulation range 1 bar ... 16 bar
• Standard nominal flow rate (standardised to DIN 1343) 1400 l/min ... 18000 l/min
Buy currently uses Select Automation shop pricing and checkout.

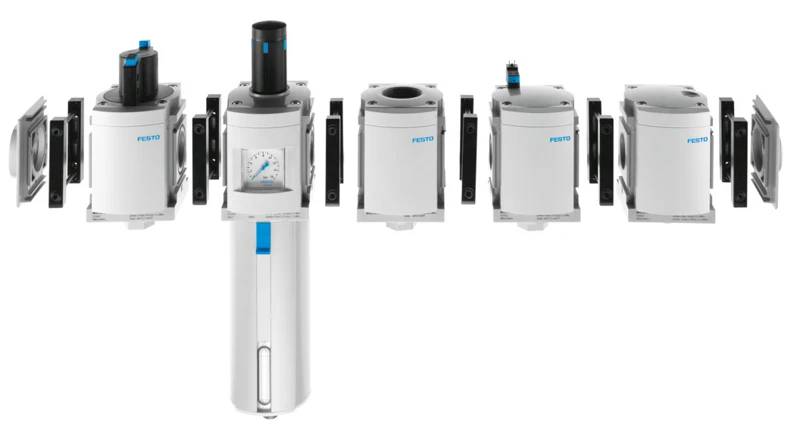

Service unit combination MSB9
• With the pre-configured MS series, Festo offers a holistic concept for your compressed air preparation.
• For simple standard applications as well as for application-specific solutions with the highest quality requirements.
• Grid dimension 90 mm
• Predefined or freely configurable combinations of service unit components
• Depending on the application, combination of filter regulator, filter, lubricator, on/off valve, soft-start valve, branching module
