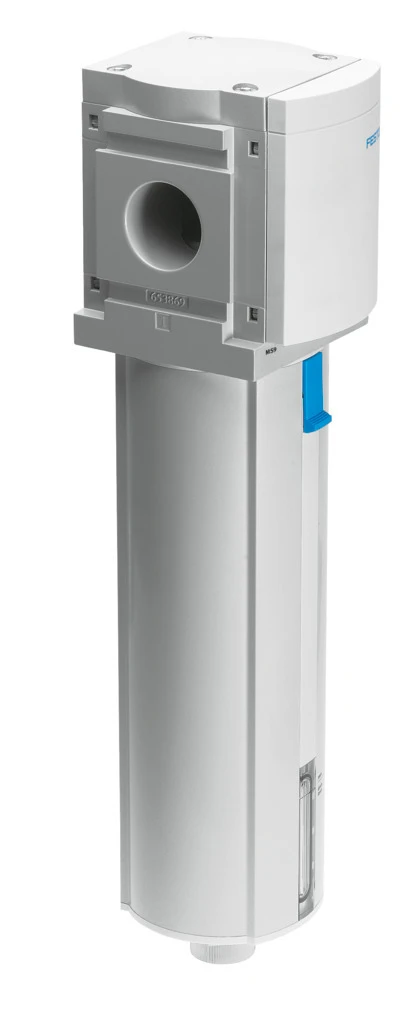

Fine filter, MS9-LFM
SKU: 552940
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Fine and micro filters MS9-LFM, MS series
• Series MS
• Size 9
• Design Fibre filter
• Grade of filtration 0.01 µm ... 1 µm
• Condensate drain Fully automatic, Manual, non-detenting, Manually rotating, Semi-automatic
• Operating pressure 0 bar ... 20 bar
• Operating medium Compressed air to ISO 8573-1:2010 [6:4:4]
• Max. condensate volume 225 ml
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Media temperature -10 °C ... 60 °C
• Ambient temperature -10 °C ... 60 °C
• Differential pressure display Visual display
Buy currently uses Select Automation shop pricing and checkout.
Micro filter MS9-LFM-A
• Grid dimension 90 mm
• High-efficiency filter for exceptionally clean compressed air
• Removing oil aerosols from compressed air
• Optionally with differential pressure indicator for indication of contamination
• Available with electronic filter contamination indicator
