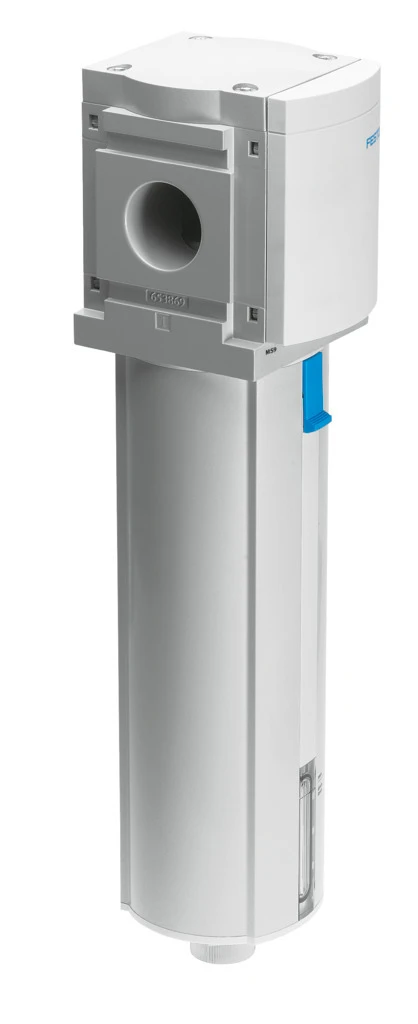

Micro filter, MS9-LFM-3/4-AUV-HF

Specifications • Fine and micro filters MS9-LFM, MS series • Series MS • Size 9 • Design Fibre filter • Grade of filtration 0.01 µm • Condensate drain Fully automatic, Manual, non-detenting • Symbol 00991520 • Operating pressure 2 bar ... 12 bar • Operating medium Compressed air to ISO 8573-1:2010 [6:4:4] • Air purity class at output Compressed air to ISO 8573-1:2010 [3:4:2] • Max. standard flow rate for clean air class 7800 l/min • Min. standard flow rate for clean air class 390 l/min • Pneumatic connection, port 1 G3/4 • Ambient temperature 5 °C - 60 °C
