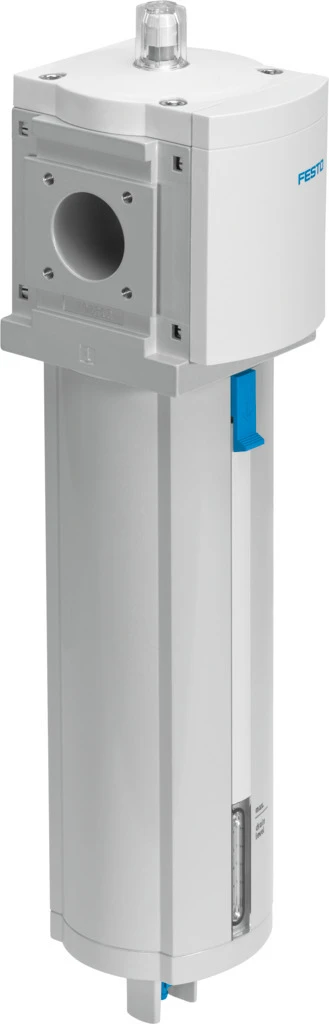

Fine filter, MS9-LFM-3/4-BUV-HF-DA
SKU: 552978
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Fine and micro filters MS9-LFM, MS series
• Series MS
• Size 9
• Design Fibre filter
• Grade of filtration 1 µm
• Condensate drain Fully automatic, Manual, non-detenting
• Symbol 00991544
• Operating pressure 2 bar ... 12 bar
• Operating medium Compressed air to ISO 8573-1:2010 [6:4:4]
• Air purity class at output Compressed air to ISO 8573-1:2010 [5:4:3]
• Max. standard flow rate for clean air class 10000 l/min
• Min. standard flow rate for clean air class 500 l/min
• Pneumatic connection, port 1 G3/4
• Ambient temperature -10 °C - 60 °C
Buy currently uses Select Automation shop pricing and checkout.
Fine filter MS9-LFM-B
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task.
• In sizes 4, 6, 9 and 12.
• Grid dimension 90 mm
• High-efficiency filter for exceptionally clean compressed air
• Removing oil aerosols from compressed air
• Optionally with differential pressure indicator for indication of contamination
• Available with electronic filter contamination indicator
