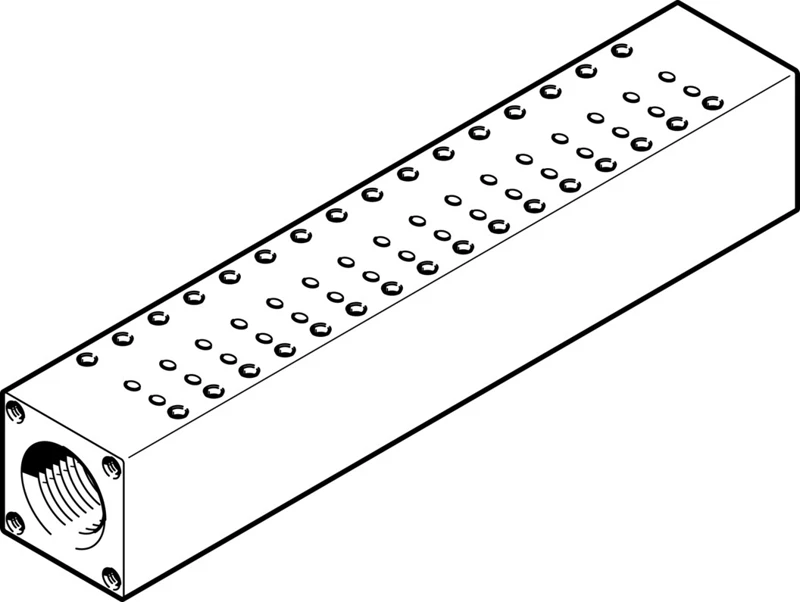

Manifold rail, MHJ9-P16
SKU: 553125
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves MHJ, fast-switching valves
• Accessories, Manifold rail For 16 valves MHJ9, without mounting bracket, with pneumatic connection M7
• Grid dimension 10 mm
• Max. number of valve positions 16 Versions according to customer specifications possible
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Product weight 428 g
• Type of mounting Via mounting bracket
• Pneumatic connection, port 1 G1/2
• Pneumatic connection, port 2 M7
• Note on materials RoHS-compliant
• Material manifold rail Wrought aluminium alloy, anodised
Buy currently uses Select Automation shop pricing and checkout.
Fast-switching valve MHJ
• Fast-switching valve for higher flow rates.
• Directly actuated poppet valve
• Identical basic valves for direct mounting or manifold installation
• Individual valve with integrated plug connection
• Switching frequencies up to 1000 Hz
• Very good reproducibility
• MHJ9: Valve manifold assembly with individual outputs or with air nozzle output
• MHJ9: Electrical connection via connecting cable MHJ9-KMH with integrated control electronics
• MHJ10: Valve manifold assembly with individual outputs
• MHJ10: Electrical connection via moulded-in cable, control electronics included in the valve
