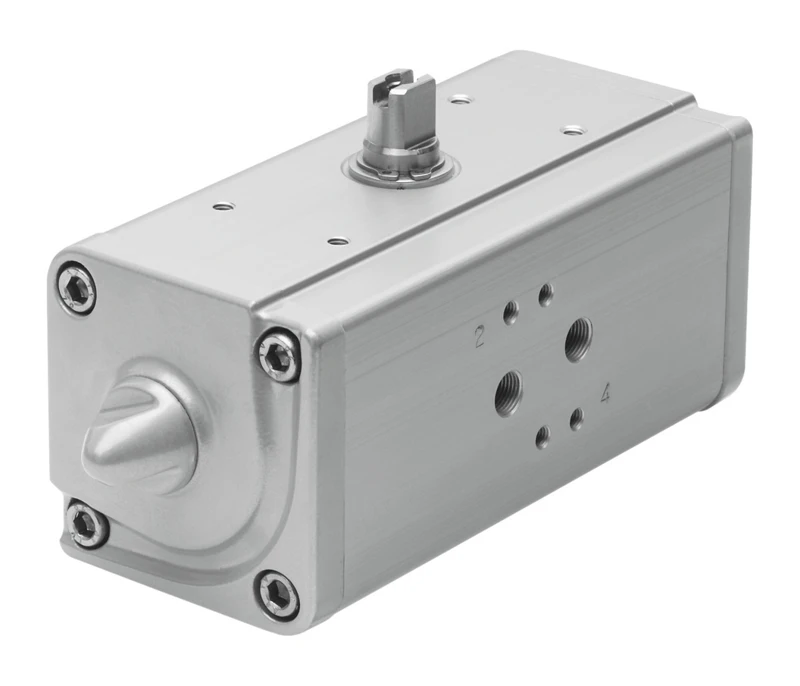

Semi-rotary drive, DAPS-0015-090-R-F04-T6

Specifications • Quarter turn actuators DAPS, double-acting • Pneumatic connection G1/8 • Torque at nominal operating pressure and 0° swivel angle 15 Nm • Shaft connection T11 • Size of valve actuator 0015 • Flange hole pattern F04 • Swivel angle 90 deg • End-position adjustment range at 0° -1 deg ... 9 deg • Shaft connection depth 13.2 mm • Fitting connection conforms to standard ISO 5211 • Cushioning No cushioning • Mounting position optional • Mode of operation Double-acting • Design Scotch yoke system • Position detection Without
