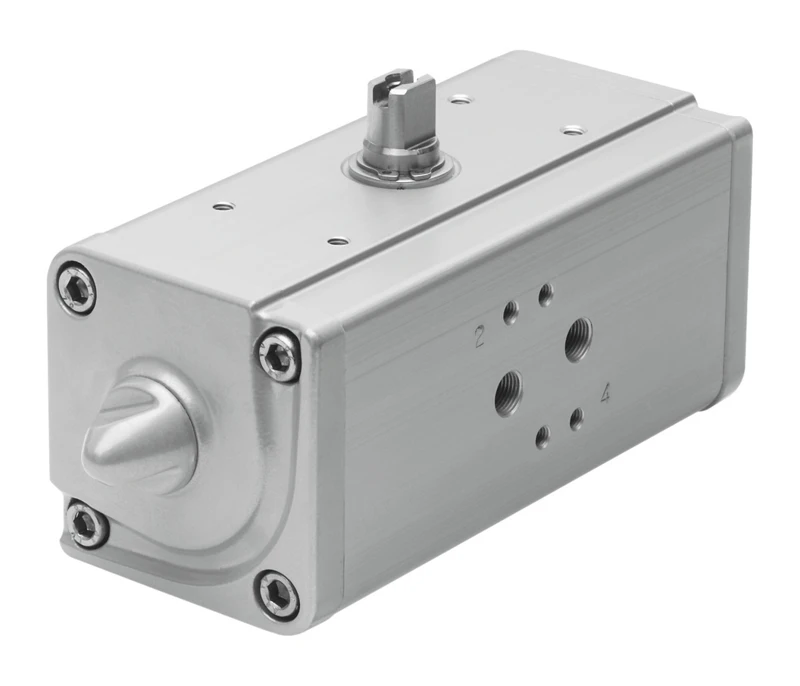

Semi-rotary drive, DAPS-0240-090-R-F0710-T6

Specifications • Quarter turn actuators DAPS, double-acting • Pneumatic connection G1/8 • Torque at nominal operating pressure and 0° swivel angle 240 Nm • Shaft connection T22 • Size of valve actuator 0240 • Flange hole pattern F07, F10 • Swivel angle 90 deg • End-position adjustment range at 0° -1 deg ... 9 deg • Shaft connection depth 24.8 mm • Fitting connection conforms to standard ISO 5211 • Cushioning No cushioning • Mounting position optional • Mode of operation Double-acting • Design Scotch yoke system • Position detection Without
