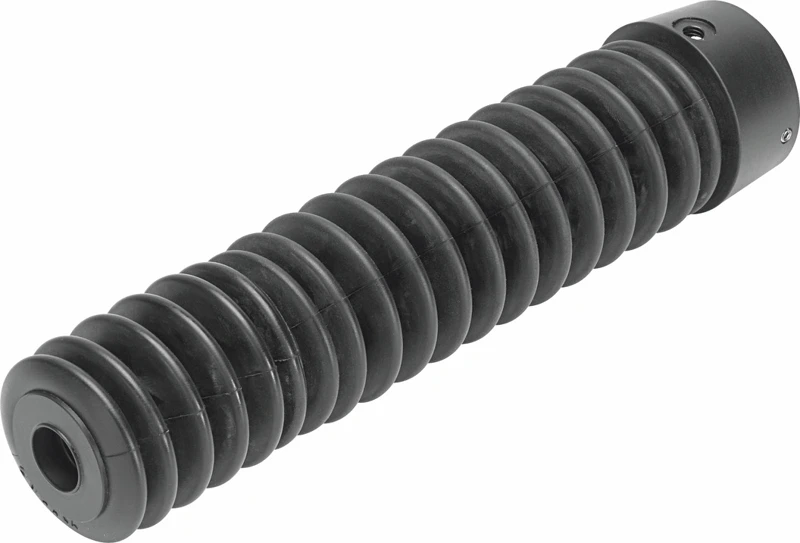

Bellows kit, DADB-V6-63-S10-50
SKU: 553331
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based cylinders DSBC, ISO 15552
• Accessories, Bellows kit
• Outside diameter 57 mm
• Size 63
• Stroke range 10 mm ... 50 mm
• Piston rod extension 28 mm
• Design Round
• Mounting position optional
• Design Bellows kit With ducted exhaust air
• Corrosion resistance class CRC 3 - high corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Media resistance Dust, Chips, Oils, Grease, Petrol
• Degree of protection IP54
• Ambient temperature -10 °C ... 80 °C
Buy currently uses Select Automation shop pricing and checkout.
Standards-based cylinder DSBC
• Standards-based profile cylinder to ISO 15552 with a wide variety of mounting options.
• Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
• ISO 15552 (ISO 6431, VDMA 24562)
• Standard profile with two sensor slots
• Wide range of variants for customised applications
• Comprehensive range of mounting accessories for just about every type of installation
• For position sensing
• Variants recommended for production systems for manufacturing lithium-ion batteries
