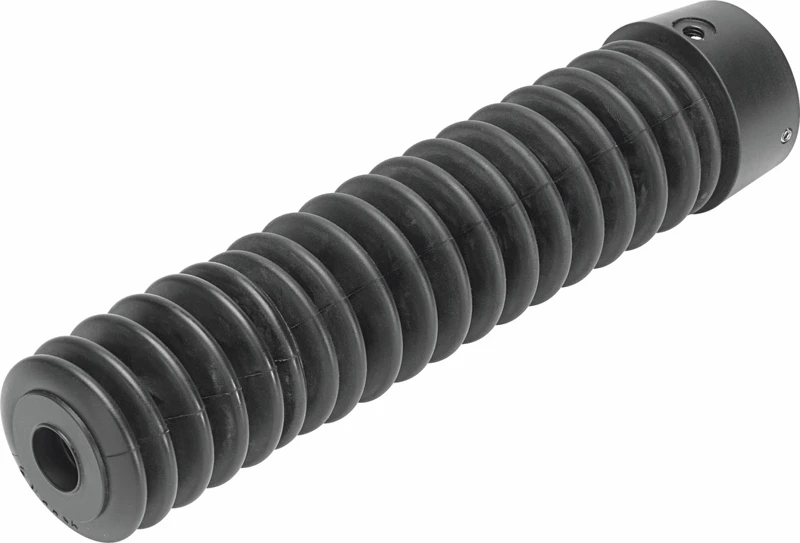

Bellows kit, DADB-S1-16-S10-50

Specifications • Round cylinders DSNU • Accessories, Bellows kit • Outside diameter 22 mm • Size 16 • Stroke range 10 mm ... 50 mm • Piston rod extension 23 mm • Design Round • Mounting position optional • Design Bellows kit With ducted exhaust air • Corrosion resistance class CRC 3 - high corrosion stress • LABS (PWIS) conformity VDMA24364-B2-L • Suitability for the production of Li-ion batteries Metals with more than 5% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils • Media resistance Dust, Chips, Oils, Grease, Petrol • Ambient temperature -10 °C ... 80 °C
