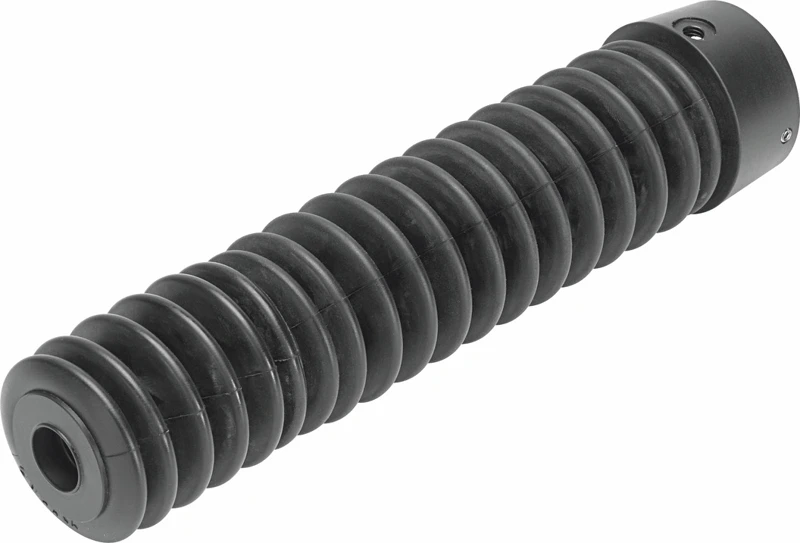

Bellows kit, DADB-S1-40-S10-50
SKU: 553461
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Round cylinders DSNU
• Accessories, Bellows kit
• Outside diameter 46 mm
• Size 40
• Stroke range 10 mm ... 50 mm
• Piston rod extension 29 mm
• Design Round
• Mounting position optional
• Design Bellows kit With ducted exhaust air
• Corrosion resistance class CRC 3 - high corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
Buy currently uses Select Automation shop pricing and checkout.
Round cylinders DSNU
• Stainless steel piston rod
• Good running performance and long service life
• Piston rod with male and female thread
• Extensive range of accessories makes it possible to install the cylinder virtually anywhere
• The basic versions conform to ISO 6432, variants are based on these standards
• Piston @ 8 ... 63 mm
• Cylinder barrel made of stainless steel
• Bearing and end caps made of wrought aluminium alloy
