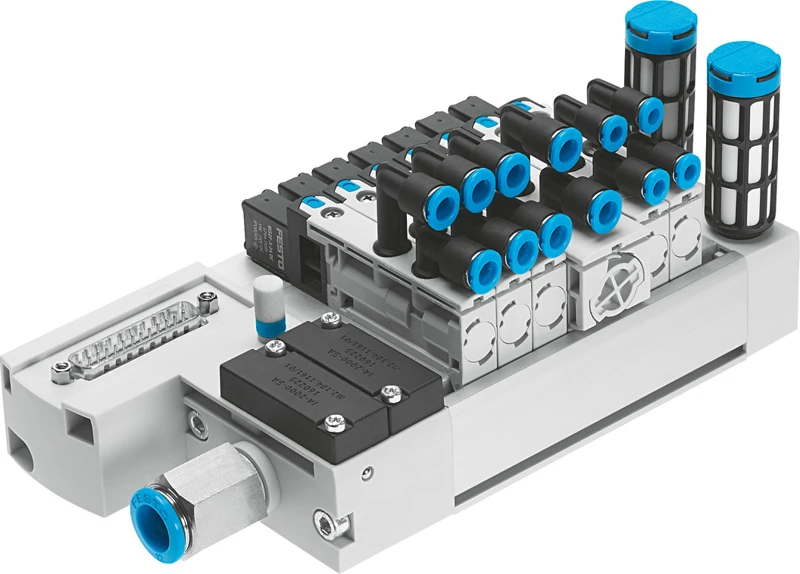

Valve terminal, VTUB-12

Specifications • Valve terminals VTUB-12 • See datasheet for available configurations • Electrical control Fieldbus, Multi-pin plug • Electrical I/O system no • Terminal type 23 • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • Media temperature -5 °C ... 60 °C • Ambient temperature -5 °C ... 60 °C • Degree of protection IP65 • Corrosion resistance class CRC 0 - No corrosion stress • Protection against direct and indirect contact PELV • Operating pressure 0.28 MPa ... 0.8 MPa • Operating pressure 2.8 bar ... 8 bar
