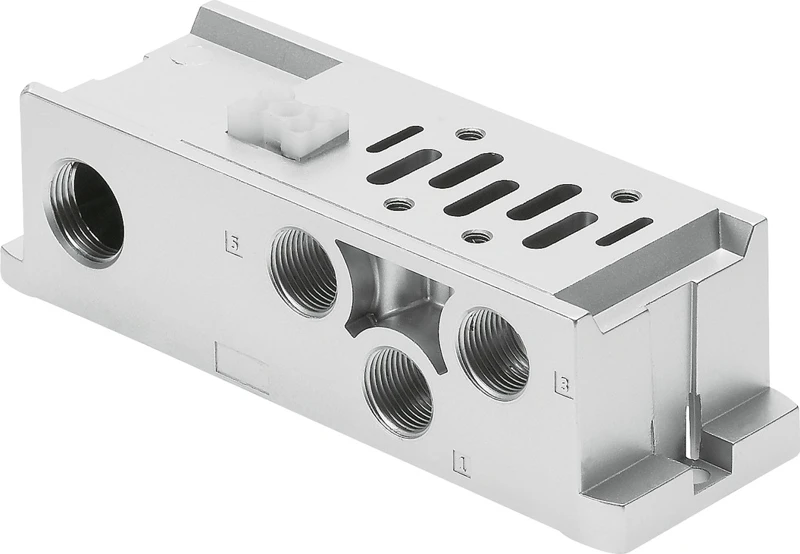

Sub-base, VABS-S2-2S-N12-B-K1
SKU: 555642
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminal VTSA/VTSA-F, NPT
• Accessories – Individual connection
• Sub-base
• Construction width 52 mm
• Based on standard ISO 5599-2
• Mounting position optional
• Pilot air supply Internal
• Operating pressure -0.09 MPa ... 1 MPa
• Operating pressure -0.9 bar ... 10 bar
• Operational voltage range AC 110 V
• Operational voltage range DC 24 V
• Immunity to surge 4 kV
• Current rating at 40° C 2 A
• Pollution degree 3
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Buy currently uses Select Automation shop pricing and checkout.
Valve terminal VTSA/VTSA-F, NPT
• High-performance valves in a sturdy metal housing
• Five valve sizes on one valve terminal (width 65 mm with adapter)
• Standardised from the multi-pin plug to the fieldbus connection and control block
• Dream team: fieldbus valve terminal suitable for electrical peripherals CPX. This means:
– Forward-looking internalcommunication system for actuating the valves and CPX modules
– Four valve sizes on one valve terminal without adapters
• Valve functions for integration in control architectures of higher categories to EN ISO 13849-1
