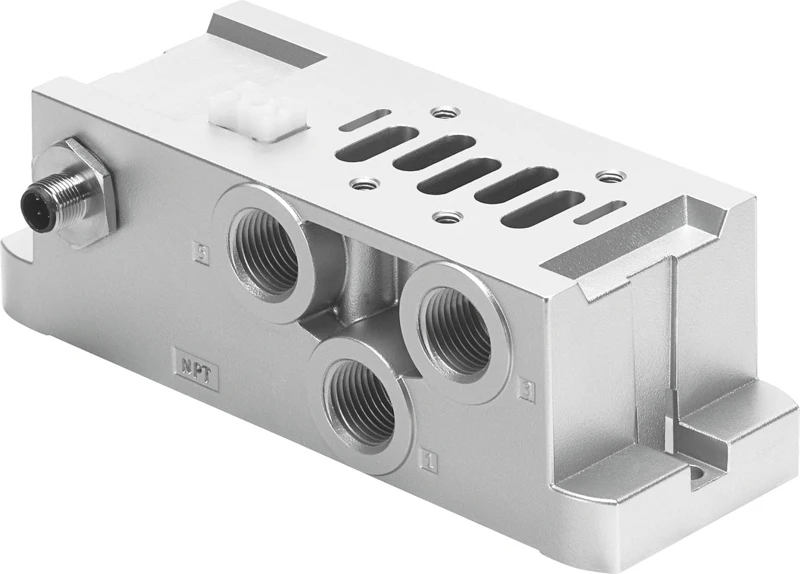

Sub-base, VABS-S2-2S-G12-B-R3

Specifications • Valve terminals VTSA • Accessories – Individual connection • Sub-base • Construction width 52 mm • Based on standard ISO 5599-2 • Mounting position optional • Pilot air supply Internal • Operating pressure -0.09 MPa ... 1 MPa • Operating pressure -0.9 bar ... 10 bar • Operational voltage range DC 24 V • Immunity to surge 0.8 kV • Current rating at 40° C 2 A • Pollution degree 3 • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
