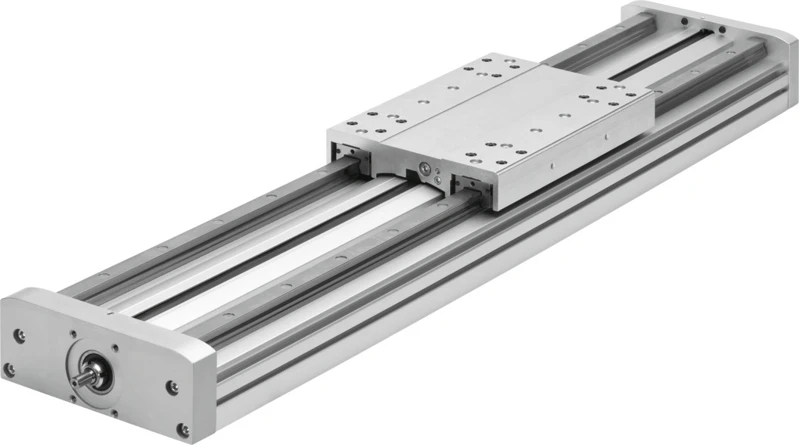

Ball screw axis, EGC-HD-220- -BS
SKU: 556821
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Spindle axes EGC-HD-BS, with heavy-duty guide
• Working stroke 50 mm ... 2400 mm
• Size 220
• Spindle diameter 25 mm
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With ball screw
• Type of motor Stepper motor, Servo motor
• Spindle type Ball screw
• Max. feed force Fx 1500 N
• Repetition accuracy ±0.02 mm
Buy currently uses Select Automation shop pricing and checkout.
Ball screw axis EGC-HD-BS
• The heavy-duty version EGC-HD with 2 guides offers even greater load-bearing capacity than the standard spindle axis EGC-BS, as well as higher speed and precision.
• With heavy-duty guide
• Axis for high repeat accuracy
• With integrated ball screw
• For maximum loads and torques
• Precise and resilient DUO guide rail
• For maximum lateral load up to 900 Nm
• Ideal as a basic axis for linear gantries and cantilever axes
• The optional spindle support enables maximum travel speed
