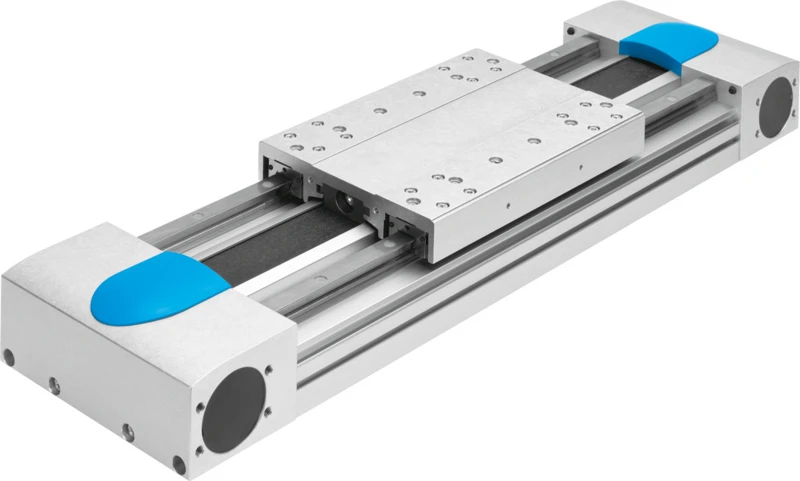

Toothed belt axis, EGC-HD-160- -TB
SKU: 556824
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Toothed belt axes EGC-HD-TB, with heavy-duty guide
• Effective diameter of drive pinion 39.79 mm
• Working stroke 50 mm ... 5000 mm
• Size 160
• Toothed-belt stretch 0.23 %
• Toothed-belt pitch 5 mm
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Electromechanical linear axis, With toothed belt
• Type of motor Stepper motor, Servo motor
• Symbol 00991212
• Functional principle of measuring system Incremental
• Max. acceleration 50 m/s²
Buy currently uses Select Automation shop pricing and checkout.
Toothed belt axis EGC-HD-TB
• The heavy-duty version EGC-HD-TB with 2 guides offer even greater load-bearing capacity than the standard toothed belt axis EGC-TB, yet still has the same high dynamic response and speed.
• It also excels with large loads and long strokes.
• With heavy-duty guide
• Axis for high speeds and acceleration
• For high loads and torques, high feed forces
• Precise and resilient DUO guide rail
• Motor can be mounted on 4 sides
• For maximum lateral load up to 900 Nm
