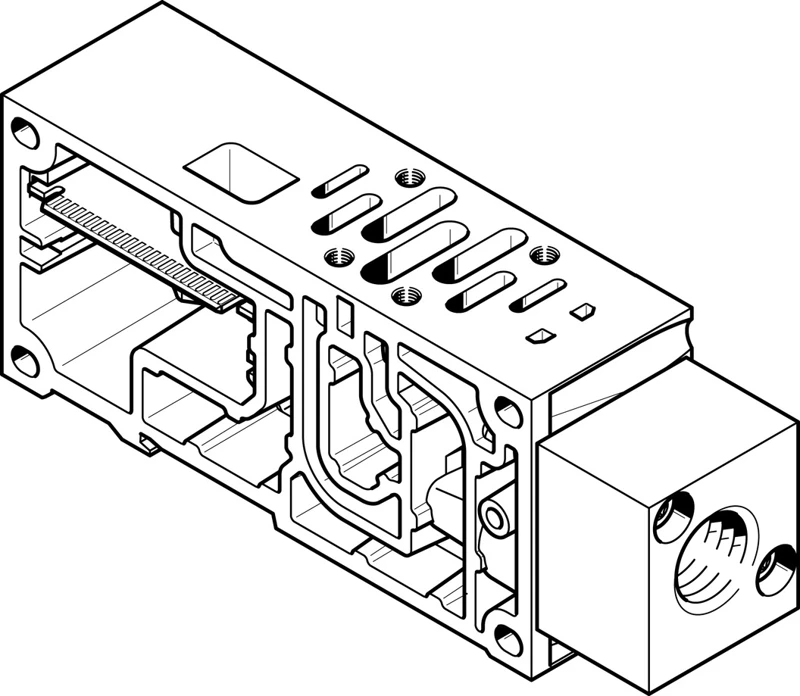

Manifold sub-base, VABV-S6-1Q-N12

Specifications • Valve terminal VTSA/VTSA-F, NPT • Soft-start valve for VTSA/VTSA-F • Manifold sub-base • Construction width 43 mm • Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 • Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 • Note on forced dynamization Switching frequency min. 1/month • CE mark (see declaration of conformity) To EU Low Voltage Directive • Corrosion resistance class CRC 0 - No corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Product weight 570 g • Pneumatic connection, port 1 1/2 NPT • Note on materials RoHS-compliant • Material plate Die-cast aluminium
