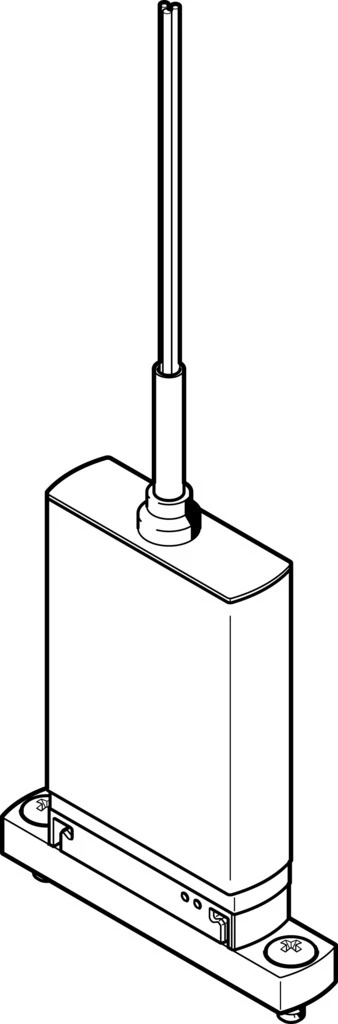

Solenoid valve, MHJ10-S-0.35-MF
SKU: 557601
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves MHJ, fast-switching valves
• Valve function 2/2-way, closed, monostable
• Type of actuation Electric
• Construction width 10 mm
• Standard nominal flow rate (standardised to DIN 1343) 100 l/min
• Pneumatic working port Sub-base
• Operating voltage 24V DC
• Operating pressure 0.05 MPa ... 0.6 MPa
• Operating pressure 0.5 bar ... 6 bar
• Operating pressure 7.25 psi ... 87 psi
• Design Poppet valve without spring return
• Type of reset Pneumatic spring
Buy currently uses Select Automation shop pricing and checkout.
Fast-switching valve MHJ
• Fast-switching valve for higher flow rates.
• Directly actuated poppet valve
• Identical basic valves for direct mounting or manifold installation
• Individual valve with integrated plug connection
• Switching frequencies up to 1000 Hz
• Very good reproducibility
• MHJ9: Valve manifold assembly with individual outputs or with air nozzle output
• MHJ9: Electrical connection via connecting cable MHJ9-KMH with integrated control electronics
• MHJ10: Valve manifold assembly with individual outputs
• MHJ10: Electrical connection via moulded-in cable, control electronics included in the valve
