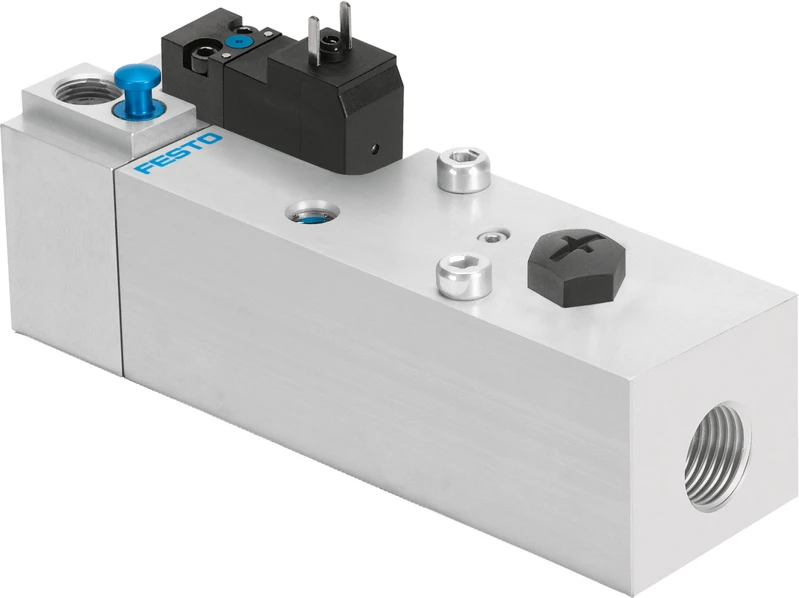

Soft start valve, VABF-S6-1-P5A4-N12-4-1
SKU: 558231
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminal VTSA/VTSA-F, NPT
• Soft-start valve for VTSA/VTSA-F
• Product weight 590 g
• Max. positive test pulse with 0 signal 2500 µs
• Max. negative test pulse with 1 signal 1400 µs
• Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Based on standard ISO 5599-2
• Type of actuation Electric
• Sealing principle Soft
• Mounting position optional
• Manual override Detenting, Self-resetting via electrical control signal
Buy currently uses Select Automation shop pricing and checkout.
Valve terminal VTSA/VTSA-F, NPT
• High-performance valves in a sturdy metal housing
• Five valve sizes on one valve terminal (width 65 mm with adapter)
• Standardised from the multi-pin plug to the fieldbus connection and control block
• Dream team: fieldbus valve terminal suitable for electrical peripherals CPX. This means:
– Forward-looking internalcommunication system for actuating the valves and CPX modules
– Four valve sizes on one valve terminal without adapters
• Valve functions for integration in control architectures of higher categories to EN ISO 13849-1
