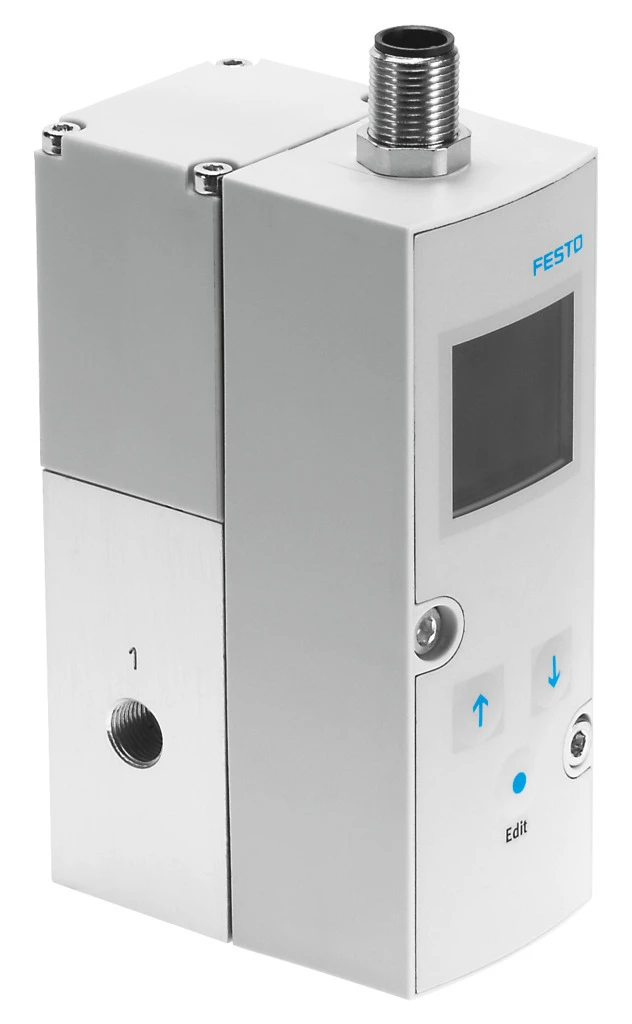

Proportional-pressure regulator, VPPM-6L-L-1-N18-0L10H-A4P-S1C1
SKU: 558342
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Proportional-pressure regulator VPPM-NPT
• Valve function 3-way proportional pressure control valve
• Pneumatic connection 1 1/8 NPT
• Pressure regulation range 0.1 bar - 10 bar
• Standard nominal flow rate 1400 l/min
• Nominal width pressurization 6 mm
• Exhaust nominal width 4.5 mm
• Actuation type Electrical
• Sealing principle Soft
• Mounting position Any
• Structural design Pilot-controlled diaphragm regulator
• Short-circuit protection For all electrical connections
Buy currently uses Select Automation shop pricing and checkout.
Proportional-pressure regulator VPPM-NPT
• The new dimension in the field of proportional-pressure regulators.
• Every application will have the right parameters simply by selecting the matching control characteristics from 3 presets at the push of a button.
• Reliable control is ensured thanks to a two-stage circuit with multi-sensor control.
• Piloted pressure regulator
• Multi-sensor control (cascade control)
• Three default presets for fast commissioning
• Integration in valve terminal MPA
• User interface with LED displays, LCD display, adjustment/selection buttons
• Integrated pressure sensor
• Electrical connection via plug connector, round design, 8-pin, M12 or terminal linking
