Multiple distributor, NPQM-LFK-G14-Q8-P10
SKU: 558841
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications

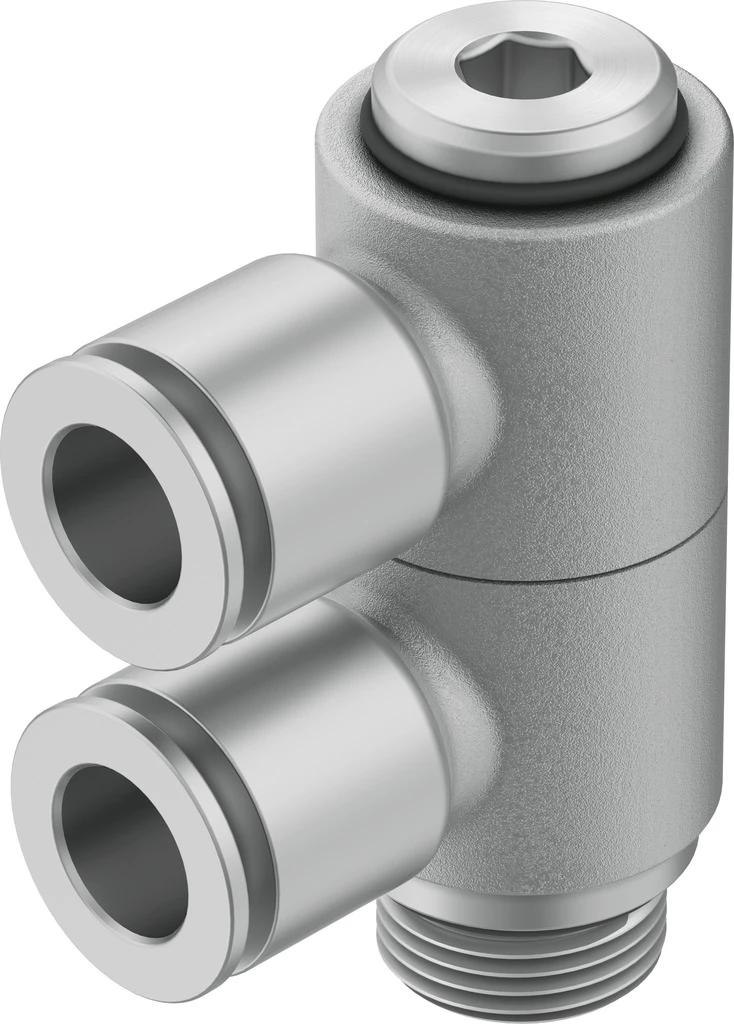

• Multiple distributor NPQM-LFK, Male thread with internal hex, L-shape, dual, F-outlet
• Pneumatic connection, port 1 Male thread G1/4
• Pneumatic connection, port 2 For tubing outside diameter of 8 mm
• Ambient temperature -20 °C - 70 °C
• Size Standard
• Nominal size 6.5 mm
• Type of seal on screwed plug Sealing ring
• Design L-shape, dual, F-outlet
• Size of pack 10
• Design Push-pull principle
• Operating pressure complete temperature range -0.095 MPa ... 1.6 MPa
• Operating pressure complete temperature range -0.95 bar ... 16 bar
• Operating pressure complete temperature range -13.775 psi ... 232 psi
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
Buy currently uses Select Automation shop pricing and checkout.
Push-in fitting, metal, standard NPQM
• Metallic push-in fitting NPQM is designed as a cost-effective metal variant for a wide range of applications, whether in the body shop, the electronics industry or workshop environments, the NPQM is particularly suited to media such as compressed air and vacuum.
• Solid-metal brass, nickel-plated
• Attractively priced metal push-in fitting
• Sturdy
• Operating medium: compressed air, vacuum
• Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
