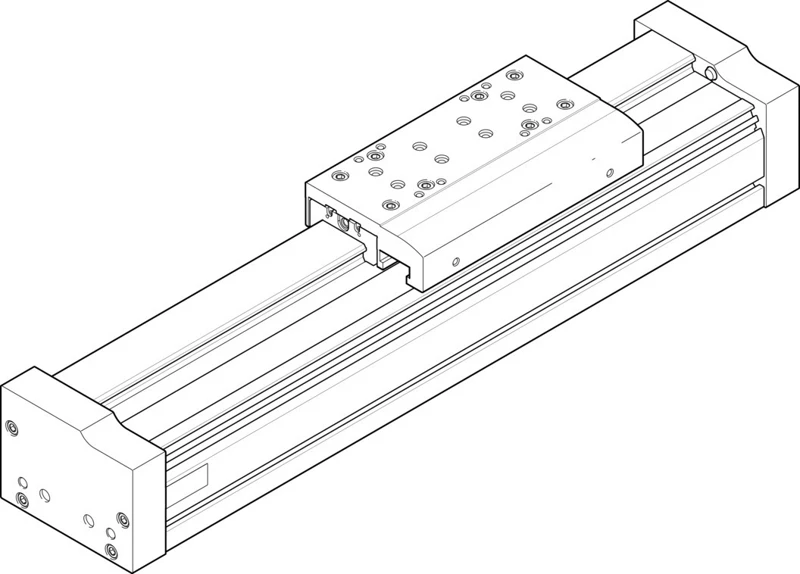

Guide axis, EGC-120- -FA
SKU: 558866
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Guide axes EGC-FA, without drive
• Working stroke 50 mm ... 8500 mm
• Size 120
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Guidance
• Max. acceleration 50 m/s²
• Max. speed 5 m/s
• Corrosion resistance class CRC 0 - No corrosion stress
• LABS (PWIS) conformity VDMA24364 zone III
• Degree of protection IP40
• Ambient temperature -10 °C ... 60 °C
Buy currently uses Select Automation shop pricing and checkout.
Guide axis EGC-FA
• Driveless guide axis suitable for the EGC series to support forces and torques in multi-axis applications.
• For spindle/toothed belt axes ELGA (drive axes)
• For supporting forces and torques in multi-axis applications
• High torsional resistance
