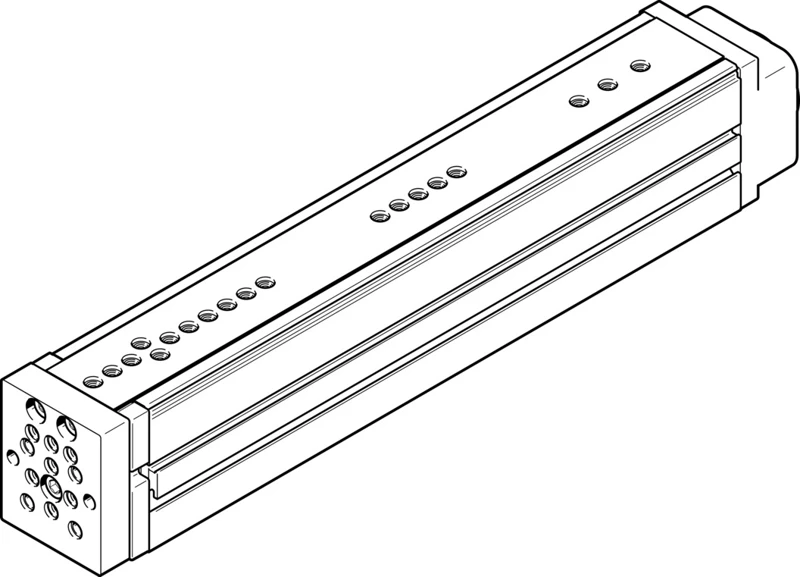

Mini slide, EGSL-BS-55-200-12.7P
SKU: 559338
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Mini slide EGSL, electric
• Working stroke 200 mm
• Size 55
• Running parallelism along Z-axis 0.08 mm
• Parallelism 0.1 mm
• Reversing backlash theoretical ≤50 µm
• Spindle diameter 12.7 mm
• Spindle pitch 12.7 mm/U
• Mounting position optional
• Guide Ball bearing cage guide
• Design Electric mini slide, Guidance, With ball screw drive
• Type of motor Stepper motor, Servo motor
• Spindle type Ball screw drive
• Repetition accuracy ±0.015 mm
Buy currently uses Select Automation shop pricing and checkout.
Mini slide EGSL
• Precise, resilient, dynamic: the electric slides series EGSL is designed for maximum performance and low-cost, free positioning in vertical applications and with short-stroke slide functions.
• Very high rated slide load, ideal for vertical applications such as press-fitting or joining
• Reliable: the completely closed spindle stops dirt or stray small parts getting into the guide area
• Axial or parallel motor mounting
