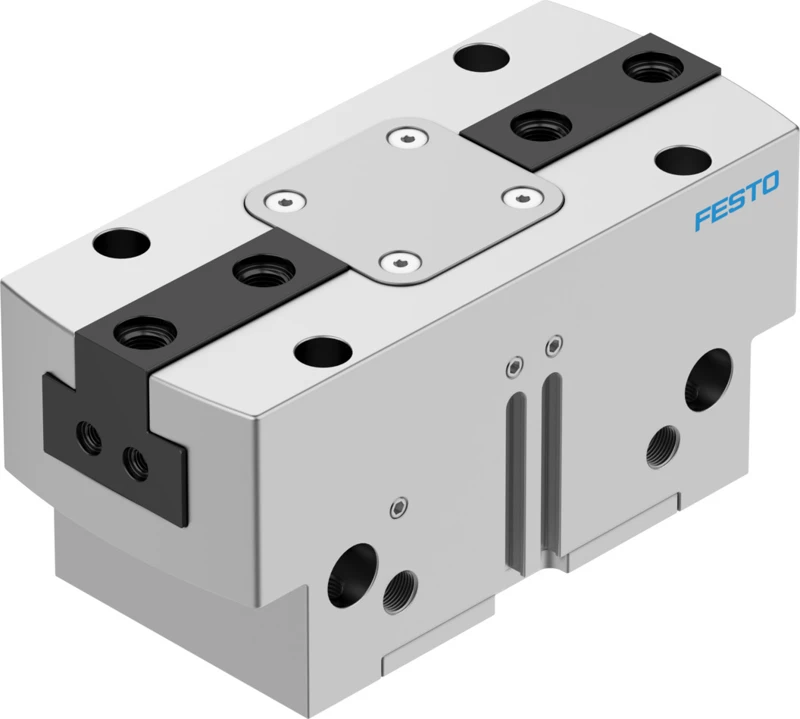

Parallel gripper, HGPT-63-A-B-F
SKU: 560231
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Parallel gripper HGPT
• Size 63
• Stroke per gripper jaws 8 mm
• Max. replacement accuracy ≤0.2 mm
• Max. angular gripper jaw backlash ax, ay ≤0.1 deg
• Max. gripper jaw backlash Sz ≤0.02 mm
• Rotationally symmetrical ≤0.2 mm
• Repetition accuracy, gripper ≤0.05 mm
• Number of gripper jaws 2
• Drive system Pneumatic
• Mounting position optional
• Mode of operation Double-acting
• Gripper function Parallel
• Gripper force back-up None
• Design Wedge-shaped drive, Force pilot operated motion sequence
• Position detection Via proximity switch
• Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi) 1791 N
Buy currently uses Select Automation shop pricing and checkout.
Parallel gripper HGPT
• Sturdy T-slot gripper for demanding tasks.
• External and internal gripping possible.
• Sturdy and powerful
• With T-slot guide
• Gripper jaw guide protected by sealing air against dust
• High-force variant available
• Can be used as a double- and single-acting gripper
• Single-acting variant or with gripping force backup, normally open (NO) or normally closed (NC)
• Suitable for external and internal gripping
