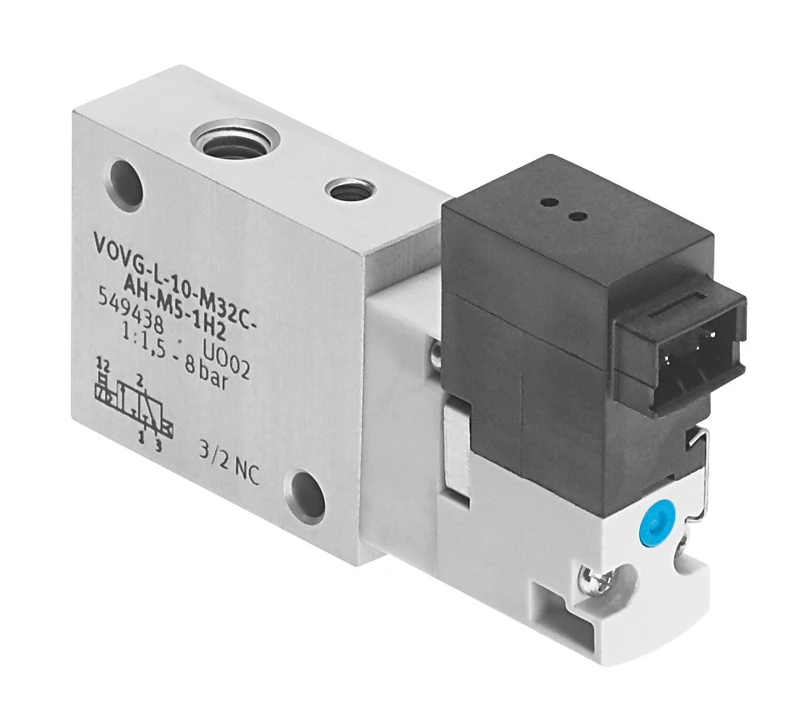

Solenoid valve,VOVG-L10-M32C-AH-M5-1H2
SKU: 560697
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VOVG
• Valve function 3/2-way, closed, monostable
• Type of actuation Electric
• Construction width 10 mm
• Standard nominal flow rate (standardised to DIN 1343) 200 l/min
• Pneumatic working port M5
• Operating voltage 24V DC
• Operating pressure 0.2 MPa ... 0.8 MPa
• Operating pressure 2 bar ... 8 bar
• Operating pressure 29 psi ... 116 psi
• Design Piston gate valve
• Type of reset Pneumatic spring
• Pneumatic connection, port 1 M5
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve VOVG
• Compact solenoid valve.
• Very compact valve for solutions with high component density
• For soft-start/quick exhaust valves MS6-SV, MS series
• In-line, semi in-line and sub-base valve
• Manifold rail for 2 ... 10 valves
