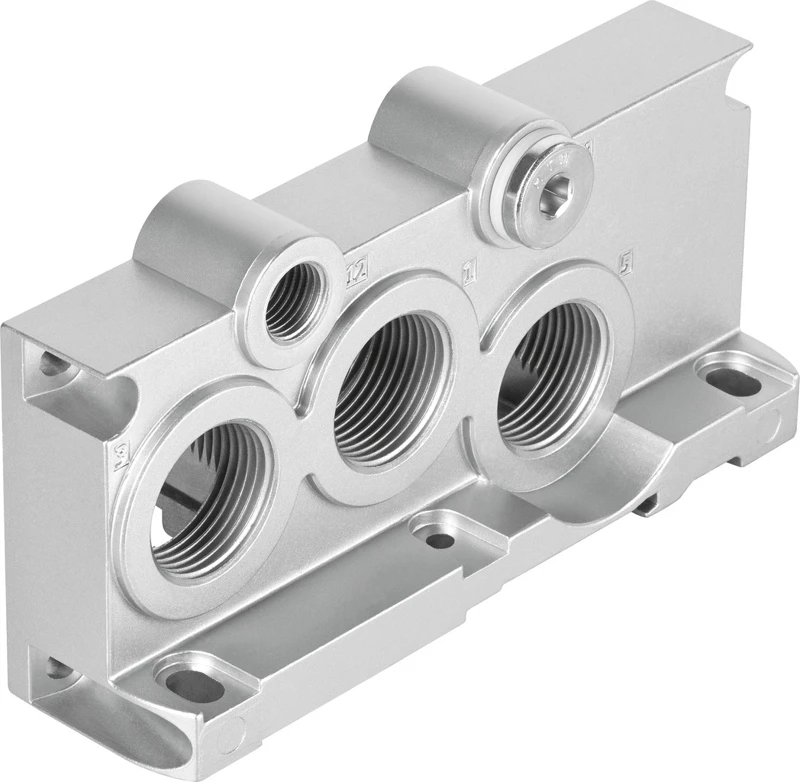

End plate, VABE-S6-2R-G34

Specifications • Valve terminals VTSA • Accessories – General • End plate • Code V1, With working air/exhaust air, internal pilot air supply, G3/4 (port 14 is sealed with a blanking plug • Based on standard ISO 5599-2 • Mounting position optional • Terminal type 44 • Operating pressure -0.09 MPa ... 1 MPa • Operating pressure -0.9 bar ... 10 bar • Corrosion resistance class CRC 0 - No corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Product weight 336 g • Pilot air port 12 G1/4 • Pneumatic connection, port 1 G3/4 • Pneumatic connection, port 3 G3/4 • Pneumatic connection, port 5 G3/4 • Note on materials RoHS-compliant • Material end plate Die-cast aluminium
