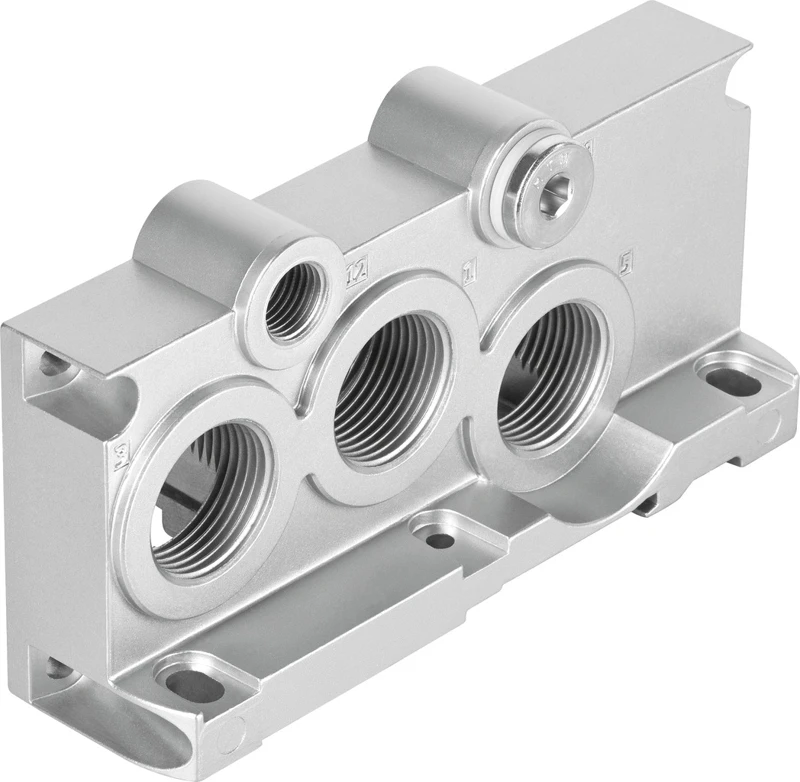

End plate, VABE-S6-2R-N34
SKU: 560838
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminal VTSA/VTSA-F, NPT
• Accessories – Pneumatic components
• End plate: Code V1, With working air/exhaust air, internal pilot air supply, 3/4 NPT (port 14 is sealed with a blanking plug)
• Based on standard ISO 5599-2
• Mounting position optional
• Terminal type 44
• Operating pressure -0.09 MPa ... 1 MPa
• Operating pressure -0.9 bar ... 10 bar
• Corrosion resistance class CRC 0 - No corrosion stress
Buy currently uses Select Automation shop pricing and checkout.
Valve terminal VTSA/VTSA-F, NPT
• High-performance valves in a sturdy metal housing
• Five valve sizes on one valve terminal (width 65 mm with adapter)
• Standardised from the multi-pin plug to the fieldbus connection and control block
• Dream team: fieldbus valve terminal suitable for electrical peripherals CPX. This means:
– Forward-looking internalcommunication system for actuating the valves and CPX modules
– Four valve sizes on one valve terminal without adapters
• Valve functions for integration in control architectures of higher categories to EN ISO 13849-1
