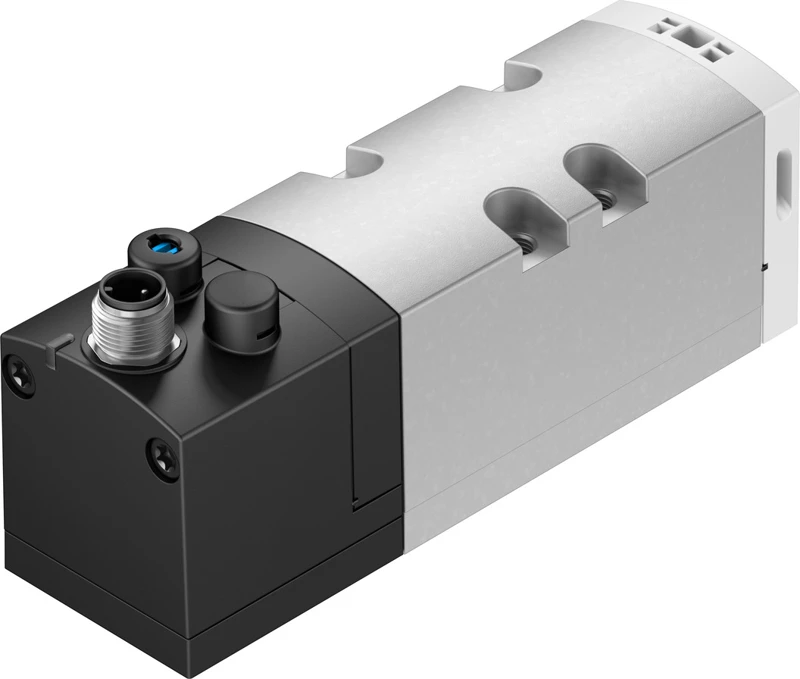

Solenoid valves, VSVA-B-M52-AD-D1-1R5L
SKU: 561362
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valve VSVA, to ISO 5599-1
• Valve function 5/2-way, monostable
• Type of actuation Electric
• Construction width 42 mm
• Standard nominal flow rate 1300 l/min
• Pneumatic working port Sub-base size 1 to ISO 5599-1, G1/4
• Operating voltage 24V DC
• Operating pressure 0.3 MPa ... 1 MPa
• Operating pressure 3 bar ... 10 bar
• Design Piston gate valve
• Type of reset Pneumatic spring
Buy currently uses Select Automation shop pricing and checkout.
Solenoid valve VSVA, to ISO 5599-1
• Sturdy metal design
• Width 42 mm/ISO size 1
• Flow rate up to 1300 l/min
• Solenoid coil with central plug M12, 24 V DC
• Wide range of vertical stacking modules: pressure regulator, flow control, vertical pressure shut-off plate, etc.
• Also available as a valve manifold
