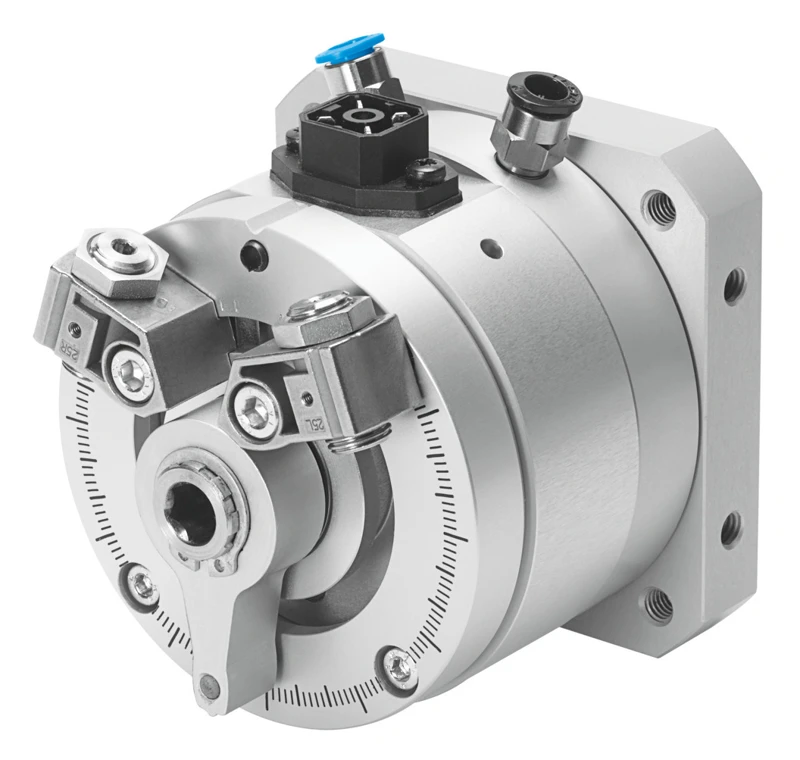

Semi-rotary drive, DSMI-40-270-A-B

Specifications • Swivel modules DSMI-B, with integrated angular displacement encoder • Rotation angle adjustment range 0 deg ... 270 deg • Stroke reduction at end positions 5 ° • Smallest positioning stroke 5° during positioning, 15° with Soft Stop • Piston diameter 40 mm • Swivel angle 0 deg ... 272 deg • Cushioning Elastic cushioning rings/plates at both ends • Positioning installation position optional • Soft Stop installation position Horizontal • Functional principle of measuring system Analogue • Design Drive shaft, running in ball bearings, Vane • Position detection Via proximity switch, Via integrated angular displacement encoder • Operating pressure 0.2 MPa ... 1 MPa • Min. mass moment of inertia, horizontal 0.006 kgm² • Max. mass moment of inertia horizontal 0.12 kgm²
