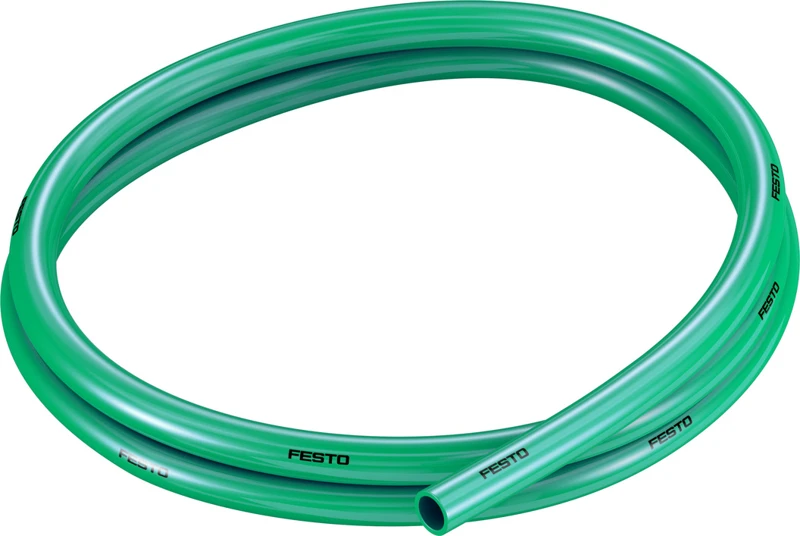

Plastic tubing, PUN-V0-10x2-GN-C
SKU: 561708
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Plastic tubing PUN-V0-C, flame-retardant
• Outside diameter 10 mm
• Inside diameter 6 mm
• Temperature-dependent operating pressure -0.95 bar - 16 bar
• Ambient temperature -35 °C - 60 °C
Buy currently uses Select Automation shop pricing and checkout.
Plastic tubing PUN-V0-C, flame-retardant
• Highly flexible single-sheath plastic tubing, flame-retardant
• For use in the immediate vicinity of welding applications.
• Material: Polyurethane
• Note on operating pressure1) Water: max. 0.6 MPa at max. 50°C
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
• Ambient temperature [°C] –35 ... +60
• Note on ambient temperature Unpressurised use up to 90 °C
• Tubing characteristics Suitable for energy chains
