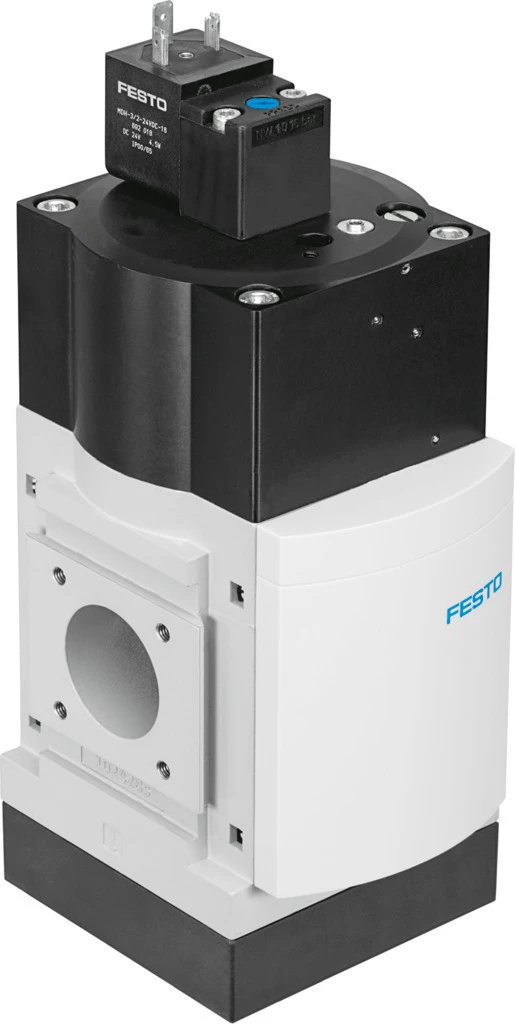

Soft start/quick exhaust valve, MS9-SV
SKU: 562176
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Soft-start/quick exhaust valves MS-SV, MS series
• Series MS
• Size 9
• Grid dimension 90 mm
• Safety function Exhaust
• Performance Level (PL) Exhausting/up to category 1, performance level c
• Design Piston gate valve
• Type of actuation Electric
• Sealing principle Soft
• Exhaust-air function Without flow control option
• Operating pressure 3.5 bar ... 16 bar
Buy currently uses Select Automation shop pricing and checkout.
Soft-start/quick exhaust valve MS9-SV
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task.
• In sizes 4, 6, 9 and 12.
• Grid dimension 90 mm
• With safety functions
• For reducing pressure quickly and reliably and for building up pressure gradually
• Adjustable pressure build-up time
• Adjustable switch-through pressure
• Supply voltage 24 V DC
