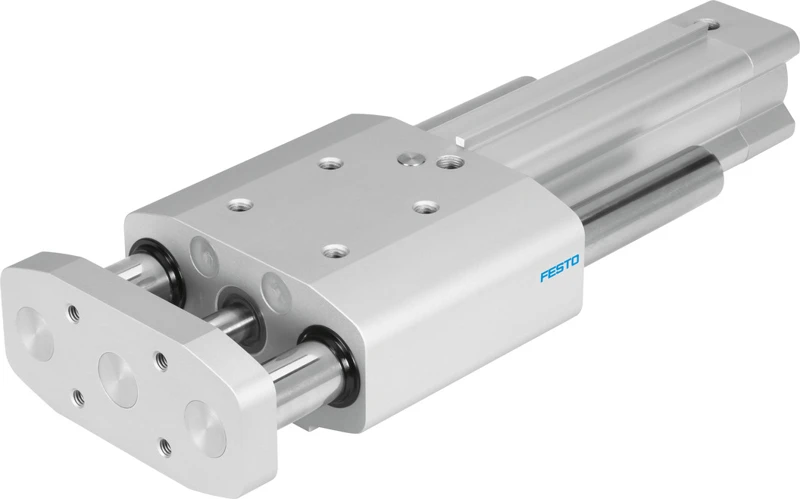

Guided drive, DGRF-C-GF-63- -
SKU: 562221
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Guided drives DGRF-C, clean design
• Stroke 10 mm ... 400 mm
• Piston diameter 63 mm
• Operating mode, drive unit Yoke
• Cushioning Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends
• Mounting position optional
• Guide Plain-bearing guide
• Design Guidance
• Position detection Via proximity switch
• Variants For unlubricated operation
• Operating pressure 0.15 MPa ... 1.2 MPa
• Operating pressure 1.5 bar ... 12 bar
• Mode of operation Double-acting
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Buy currently uses Select Automation shop pricing and checkout.
Guided drives DGRF-C, clean design
• The guided drive is used wherever hygiene, ease of cleaning and resistance are important, predominantly in dry and splash zones in the food and packaging industry.
• Corrosion-resistant in harsh environmental conditions
• Easy-to-clean design
• NSF H1-compliant lubrication
• Resistant to conventional cleaning agents
• For hygiene reasons, the threads on the end caps should be sealed with suitable plug screws
• With a dry-running seal (A3), the drive will continue to function reliably even if the lubricant has been washed away due to frequent cleaning.
• Areas of application: Bottling systems in the beverage industry (Labelling and palletising machines), Milk processing (Filling ice cream and yoghurt containers, etc.), Meat processing, Confectionery production, Production of baked goods, Packaging industry (Food, pharmaceuticals, cosmetics, chemicals, beverages and tobacco)
