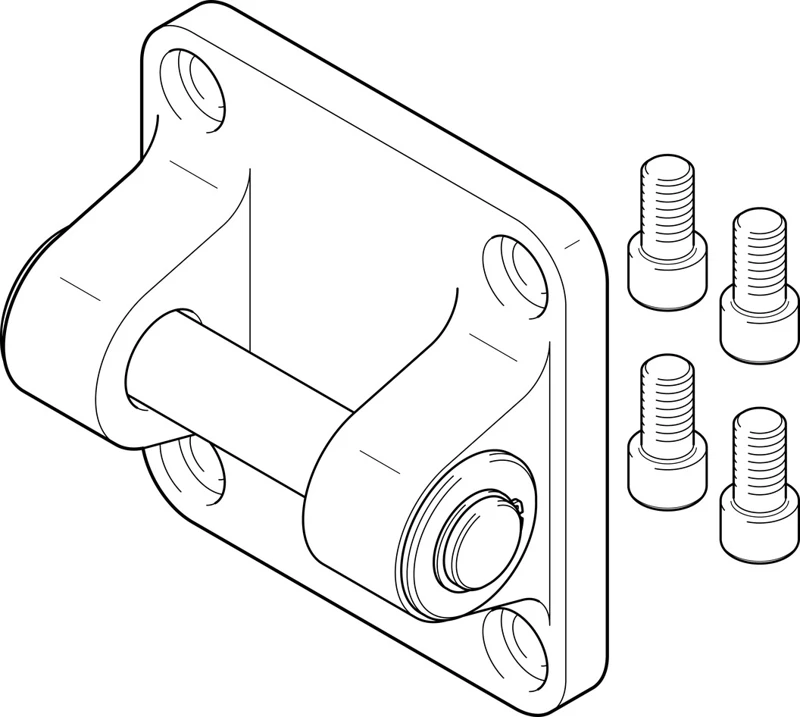

Standards-based cylinders DSBG, Accessories, Swivel flange, SNGB-200-B
SKU: 562455
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Standards-based cylinders DSBG, to ISO 15552
• Accessories, Swivel flange
• Size 200
• Based on standard ISO 15552
• Corrosion resistance class CRC 2 - Moderate corrosion stress
• LABS (PWIS) conformity VDMA24364-B2-L
• Ambient temperature -40 °C ... 90 °C
• Product weight 10020 g
• Note on materials RoHS-compliant
• Material mounting Steel Galvanised
• Material bolt Galvanised steel
• Material sleeve Steel
• Material bearing Polymer
• Material disc Galvanised steel
• Material screws Galvanised steel
• Material lock Spring steel, galvanised
Buy currently uses Select Automation shop pricing and checkout.
Standards-based cylinders DSBG, to ISO 15552
• ISO 15552 (ISO 6431, VDMA 24562)
• Sturdy tie rod design
• For contactless position sensing
• Comprehensive range of accessories for just about every type of installation
• Optionally without sensing and without pneumatic end-position cushioning (price advantage)
