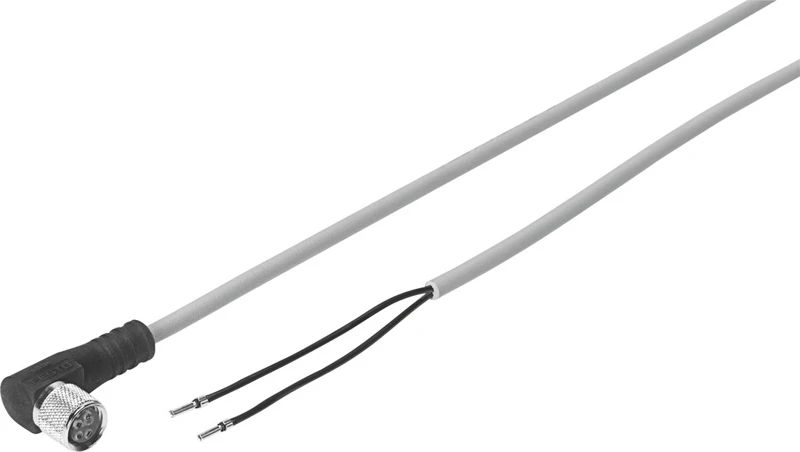

Connecting cable, NEBV-M8W4L-E-2.5-LE2
SKU: 562471
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Connecting cable NEBV
• Conforms to standard EN 61076-2-101, ISO 20401
• Switching status indication Yellow LED
• Product weight 45 g
• Electrical connection 4-pin/2-wire, Angled socket/cable, M8x1
• Operational voltage range DC 20.4 V ... 26.4 V
• Current rating at 40° C 3 A
• Cable length 2.5 m
• Cable characteristic Suitable for energy chains
• Min. cable bending radius 35 mm
• Cable diameter 3.3 mm
• Cable structure 2 x 0.25 mm²
Buy currently uses Select Automation shop pricing and checkout.
Connecting cable NEBV
• For solenoid coils form A, form B or form C
• For solenoid coils with thread M8x1 or M12x1 A-coded
• For solenoid coils ZC or various special connection patterns
• Pre-assembled at one or both ends
• Cable length 0.1 ... 30 m
• With PUR cable
• Ambient temperature -25 ... +80 °C
