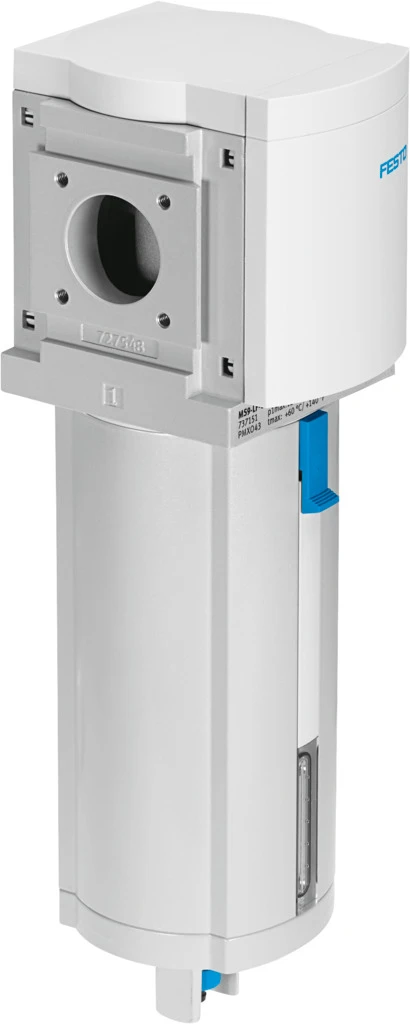

Filter, MS9-LF

Specifications • Filters MS9-LF, MS series • Size 9 • Series MS • Mounting position Vertical +/-5° • Grade of filtration 5 µm ... 40 µm • Condensate drain Fully automatic, Manually rotating, Semi-automatic • Design Sintered filter with centrifugal separator • Degree of condensate separation >75 % • Operating pressure 0 bar ... 20 bar • Standard nominal flow rate (standardised to DIN 1343) 6000 l/min ... 16000 l/min • Approval c UL us - Recognized (OL) • CE mark (see declaration of conformity) To EU Explosion Protection Directive (ATEX) • CE marking (see declaration of conformity) To UK EX instructions • Explosion protection certification outside the EU EPL Db (GB), EPL Gb (GB) • Ambient temperature -10 °C ... 60 °C
