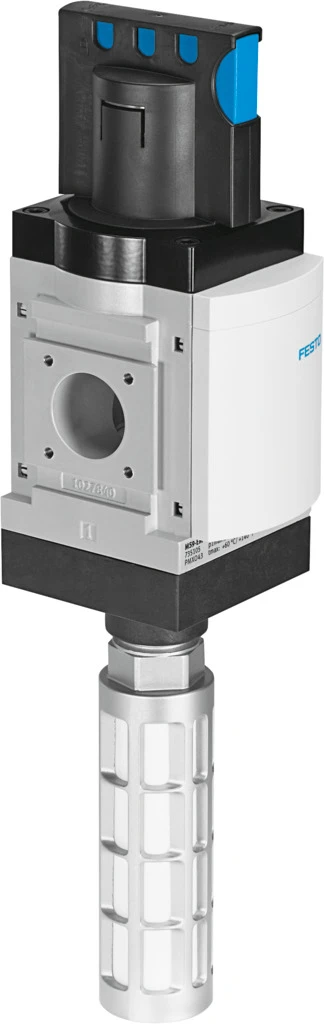

On/off valve, MS9-EM-G-S-VS
SKU: 562952
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• On/off valves MS9-EM, MS series
• Size 9
• Grid dimension 90 mm
• Design Piston gate valve
• Type of actuation Manual
• Sealing principle Soft
• Exhaust-air function Without flow control option
• Actuator lock Rotary knob with detent
• Type of reset Forced
• Type of piloting Direct
• Symbol 00991670
• Valve function 3/2 double solenoid
• Operating pressure 0 bar ... 20 bar
• Lap Overlap
• Standard nominal flow rate (standardised to DIN 1343) 18000 l/min
• Pneumatic connection, port 3 G1
Buy currently uses Select Automation shop pricing and checkout.
On/off valve MS9-EM
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task.
• In sizes 4, 6, 9 and 12.
• Grid dimension 90 mm
• Manual 3/2-way valve for pressurising and exhausting pneumatic systems
• A silencer can be attached or the exhaust air ducted at port 3
• Switching position is immediately recognisable
• Optionally with pressure gauge and pressure sensor
