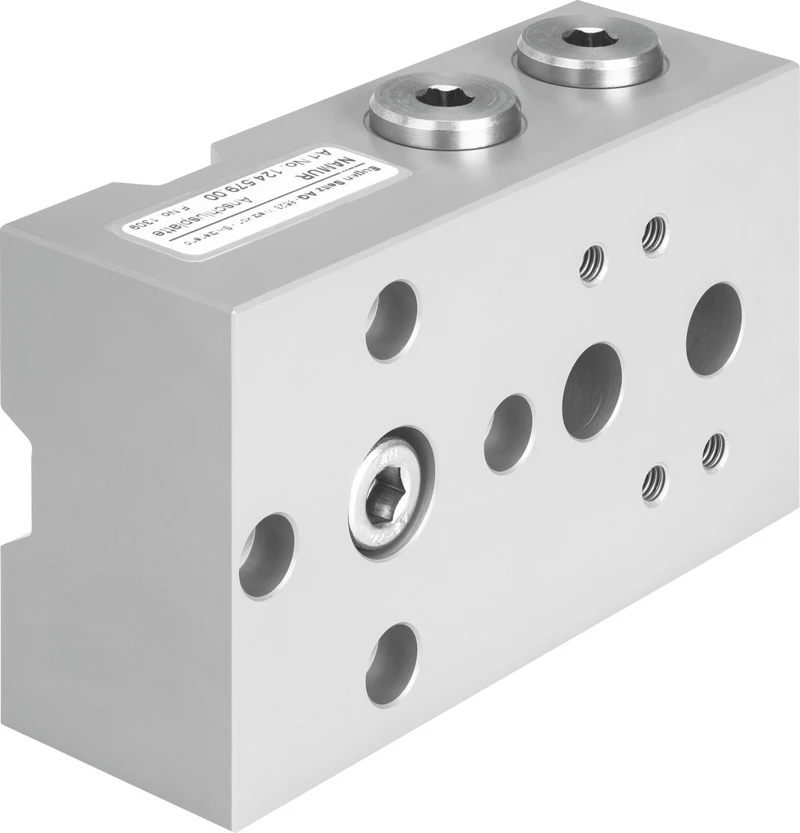

Sub-base, VABS-S7-S-G14

Specifications • Solenoid valves VSNC • Accessories, Sub-base • Mounting position optional • Operating pressure 0 MPa ... 1 MPa • Operating pressure 0 bar ... 10 bar • Explosion protection Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Corrosion resistance class CRC 4 - Very high corrosion stress • LABS (PWIS) conformity VDMA24364 zone III • Degree of protection IP65 • Type of mounting With through-hole • Pneumatic connection, port 1 G1/4 • Pneumatic connection, port 2 Flange 1/4, NAMUR port pattern • Pneumatic connection, port 3 G1/4
