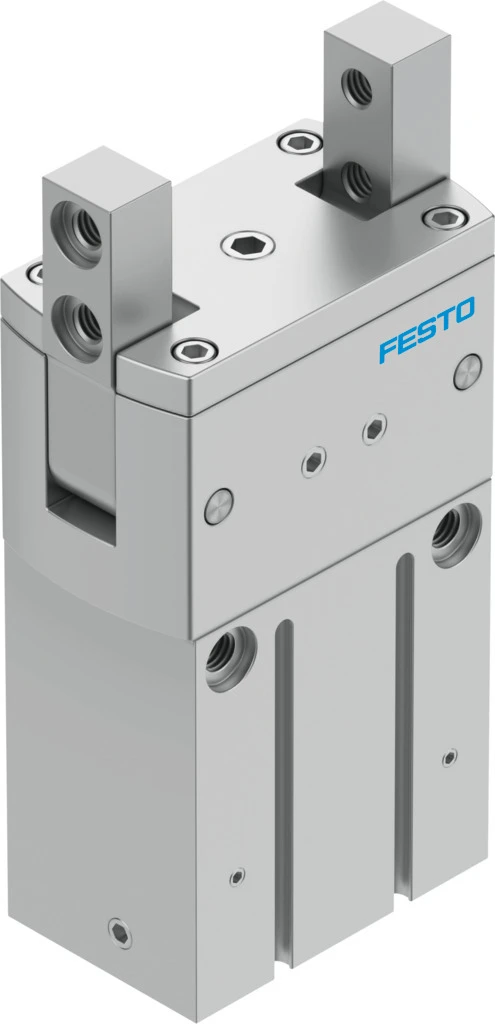

Radial gripper, HGRT-25-A-G2
SKU: 563909
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Radial grippers HGRT, heavy-duty
• Size 25
• Max. replacement accuracy ≤0.2 mm
• Max. angular gripper jaw backlash ax, ay ≤0.1 deg
• Max. opening angle 180 deg
• Rotationally symmetrical ≤0.2 mm
• Repetition accuracy, gripper ≤0.02 mm
• Number of gripper jaws 2
• Mounting position optional
• Mode of operation Double-acting
• Gripper function Radial
• Gripper force back-up During closing
• Design Force pilot operated motion sequence
• Position detection Via proximity switch, Via inductive sensors
• Max. force on gripper jaw Fz static 180 N
Buy currently uses Select Automation shop pricing and checkout.
Radial gripper HGRT
• For demanding tasks: sturdy radial gripper with synchronised slotted guide.
• Sturdy and precise kinematics for very high torque resistance and long service life
• Secure gripping thanks to precise, polished plain-bearing guide
• Slotted guide
• Optimum cycle times thanks to freely adjustable opening angle up to a maximum of 90° per gripper finger. This prevents possible collisions due to the gripper jaws opening too far.
• Can be used as a double- and single-acting gripper
• Single-acting variant or with gripping force backup, normally closed (NC)
• Suitable for external and internal gripping
• Wide range of adaptation options on the drives
