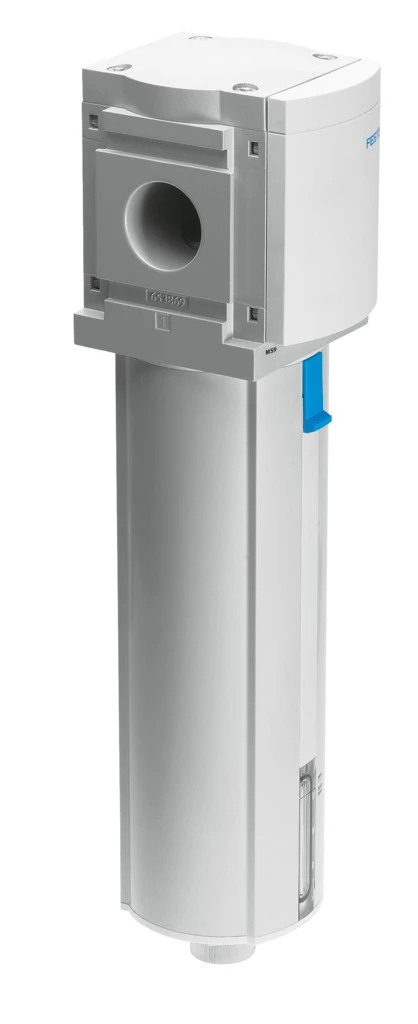

Micro filter, MS9-LFM-G-AUM

Specifications • Fine and micro filters MS9-LFM, MS series • Series MS • Size 9 • Design Fibre filter • Grade of filtration 0.01 µm • Condensate drain Manually rotating • Symbol 00991519 • Operating pressure 0 bar ... 20 bar • Operating medium Compressed air to ISO 8573-1:2010 [6:4:4] • Air purity class at output Compressed air to ISO 8573-1:2010 [3:4:2] • Max. standard flow rate for clean air class 6500 l/min • Min. standard flow rate for clean air class 325 l/min • Pneumatic connection, port 1 Manifold module • Ambient temperature -10 °C - 60 °C
