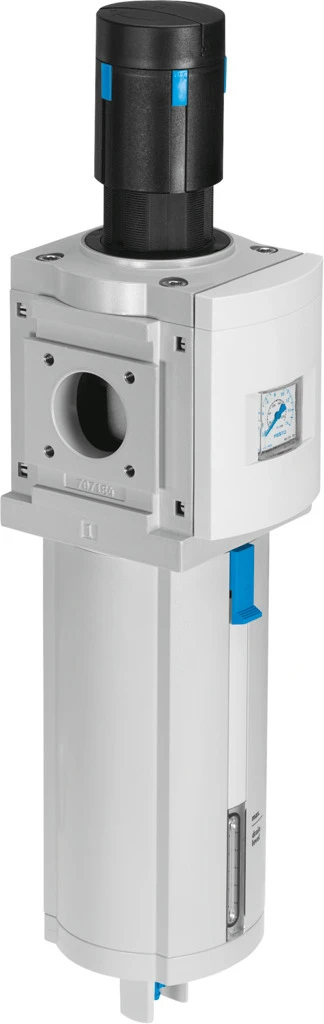

Filter regulator, MS9-LFR-G-D6-CUV-AG-BAR-AS
SKU: 564115
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Filter regulators MS9-LFR, MS series
• Size 9
• Series MS
• Actuator lock can be closed with accessories
• Mounting position Vertical +/-5°
• Grade of filtration 5 µm
• Condensate drain Fully automatic
• Design Piloted filter diaphragm regulator
• Max. condensate volume 220 ml
• Controller function Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function
• Degree of condensate separation >75 %
• Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge
• Operating pressure 2 bar - 12 bar
• Pressure regulation range 0.5 bar - 7 bar
Buy currently uses Select Automation shop pricing and checkout.
Filter regulator MS9-LFR
• All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors.
• The right solution for very task. In sizes 4, 6, 9 and 12.
• Grid dimension 90 mm
• MS9-LFR: piloted or directly actuated filter diaphragm regulator
• Good control characteristics with minimal pressure hysteresis and primary pressure compensation
• Good particle and condensate separation
• With or without secondary exhausting
• High flow rate
• Lockable rotary knob
• Return flow option for exhausting from output 2 to input 1 already integrated
