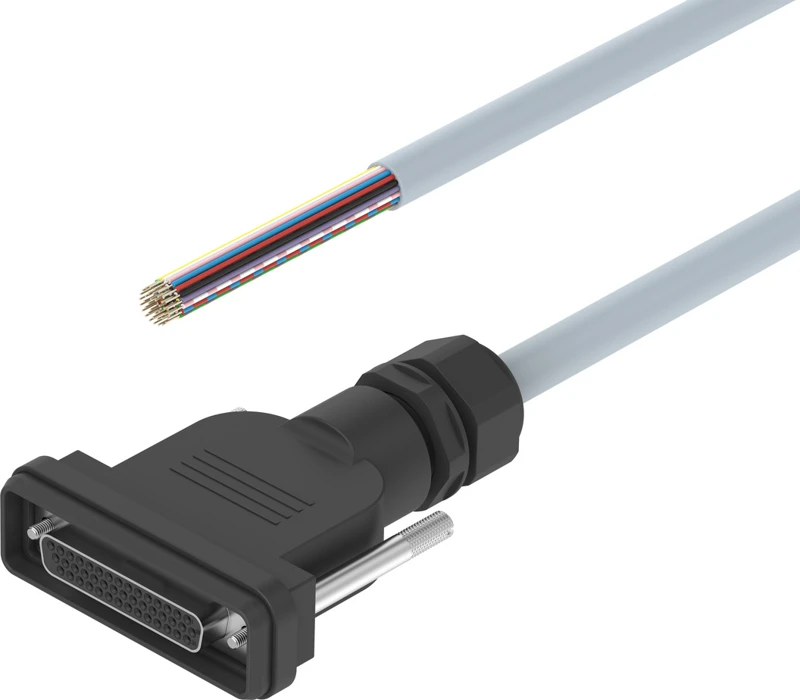

Connecting cable, NEBV-S1G44-K-2.5-N-LE39
SKU: 565289
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Valve terminals VTUB-12
• Accessories, Connecting cable for multi-pin plug
• Type of mounting 4-40UNC
• Mounting position optional
• Product weight 389 g
• Electrical connection 44-pin, Socket, Sub-D
• Operational voltage range DC ≤30 V
• Current rating at 40° C 0.86 A
• Cable length 2.5 m
• Cable characteristic For static applications
• Min. cable bending radius 95 mm
• Cable diameter 9.6 mm
• Cable diameter tolerance ± 0.5 mm
• Cable structure 40 x 0.14 mm²
• Degree of protection IP65, IP67, In assembled state
Buy currently uses Select Automation shop pricing and checkout.
• Connecting cable NEBV
• For solenoid coils form A, form B or form C
• For solenoid coils with thread M8x1 or M12x1 A-coded
• For solenoid coils ZC or various special connection patterns
• Pre-assembled at one or both ends
• Cable length 0.1 ... 30 m
• With PUR cable
• Ambient temperature -25 ... +80 °C
